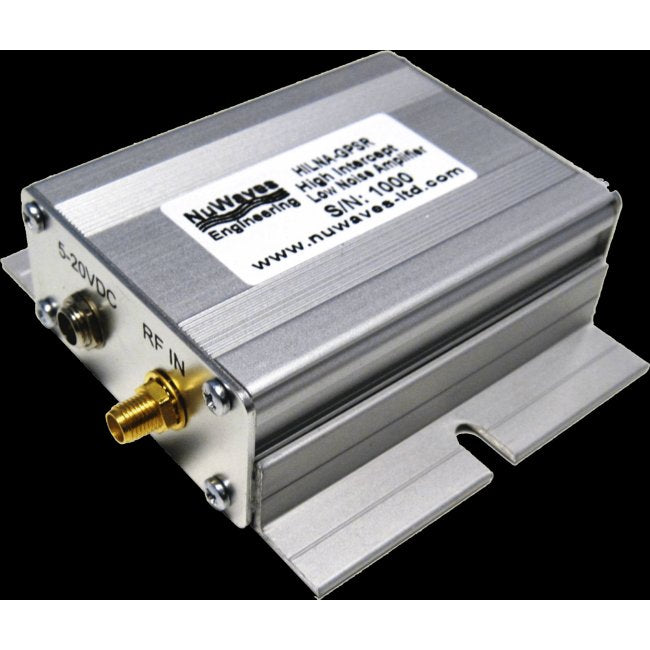

Hilna™ GPS Low Noise Amplifier
Hilna™ GPS Low Noise Amplifier
SKU:HIG-b84dc8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hilna™ GPS Low Noise Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
Hilna™ GPS Low Noise Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
This high-performance module delivers 32 dB of gain across the frequency range of 1200 MHz to 1600 MHz with an OIP3 of +30 dBm and less than 1 dB of noise figure. The HILNA GPS is also usable up to 2000 MHz with 28 dB of gain (typical). NuWaves’ HILNA GPS™ is a broadband low noise amplifier designed to achieve high gain while maintaining low noise and a high third order intercept point specifically for L1 (1575.43 MHz) and L2 (1227.6 MHz) GPS signals. The HILNA GPS’s robust power supply also operates over a very broad range easily allowing the unit to be integrated into systems without regard to power supply precision. Custom Solutions Available: Other Bandwidths Military Screening Form Factors Filtering Gain For an option with mounting flanges, please use P/N: HILNA-GPS-M/F
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
32 dB
Specifications Input Supply Vdc
5 - 20
Specifications Maximum Frequency
1600 MHz
Specifications Minimum Frequency
1200 MHz
Specifications Noise Figure Typ
0.8 dB
Specifications Size Lx W X H
3.15 x 2.50 x 1.18 Inch
Specifications Weight
5 oz
