Hilna™ HF Low Noise Amplifier
Hilna™ HF Low Noise Amplifier
SKU:HIG-d77081
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hilna™ HF Low Noise Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
Hilna™ HF Low Noise Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

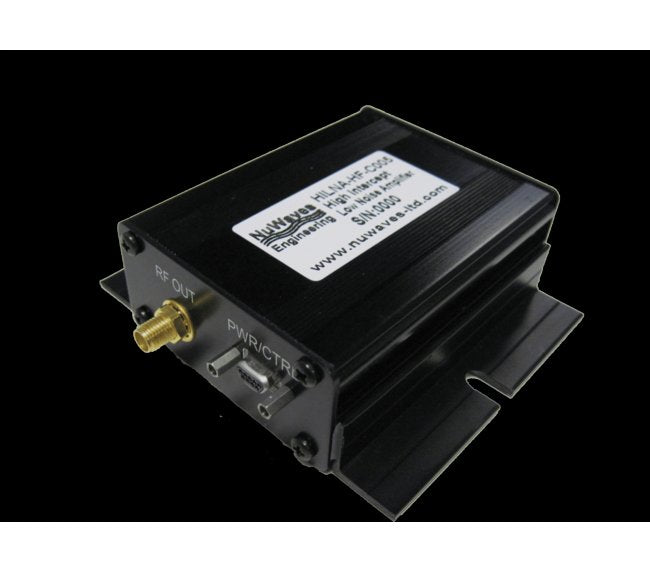

NuWaves’ HILNA HF delivers 30 dB of gain over the 2 MHz to 50 MHz range, with less than 5 dB of Noise Figure and an OIP3 of +30 dBm. The HILNA HF amplifiers are designed to achieve low noise and high third order intercept point along with extremely high gain. These characteristics are maintained across multiple octaves; covering the 2 MHz to 50 MHz Frequency Range. Custom Solutions Available: Other Bandwidths Military Screening Form Factors Filtering Gain
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
30 dB
Specifications Input Supply Vdc
12 - 30
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
2 MHz
Specifications Noise Figure Typ
3 dB
Specifications Size Lx W X H
3.15 x 2.50 x 1.18 Inch
Specifications Weight
5 oz
