Hilna™ LS C026 Hermetic Low Noise Amplifier
Hilna™ LS C026 Hermetic Low Noise Amplifier
SKU:HIG-7f7731
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hilna™ LS C026 Hermetic Low Noise Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
Hilna™ LS C026 Hermetic Low Noise Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

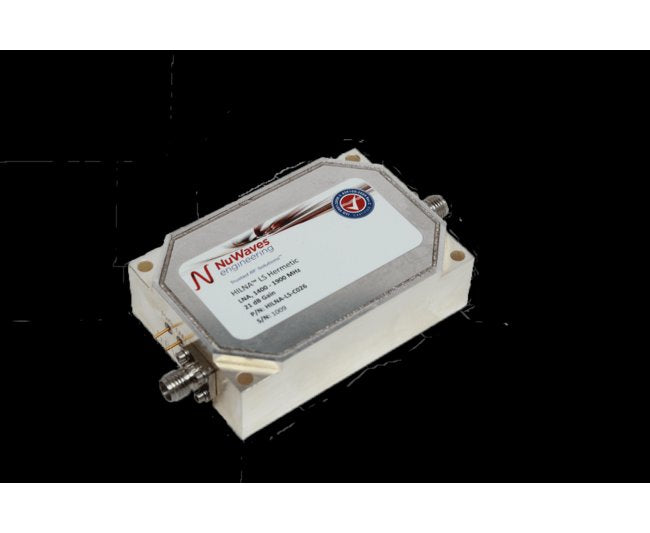

High Performance, Hermetic Low Noise Amplifier. The HILNA LS C026 operates at 1400 MHz to 1900 MHz delivering 21 dB of gain with a noise figure of less than 2 dB and OIP3 of +30dBm. These units are hermetically sealed to withstand most rugged environments. The HILNA LS C026 is the latest addition to the family of HILNA broadband low noise amplifiers, within L-Band frequencies. This model features a miniature form factor of 3.2 cubic inches ideal for RF Front Ends, High Performance Receivers, Base Station Low Noise Amplifiers, and more! Custom Solutions Available: Other Bandwidths Military Screening Form Factors Filtering Gain
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
21 dB
Specifications Input Supply Vdc
5 - 8
Specifications Maximum Frequency
1900 MHz
Specifications Minimum Frequency
1400 MHz
Specifications Noise Figure Typ
2 dB
Specifications Size Lx W X H
2.50 x 1.70 x 0.75 Inch
Specifications Weight
3 oz
