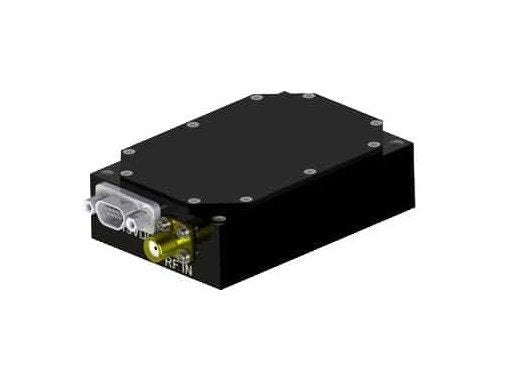

This high-performance module delivers 15 dB of gain over the broad range of 1 GHz to 3 GHz with a noise figure of less than 2 dB and OIP3 of +33 dBm. NuWaves’ HILNA LS™ C021-D is a broadband low noise amplifier covering L- & S-bands, and designed to achieve high gain while maintaining low noise and a high third-order intercept point. The HILNA LS’s small form factor (3.3 in3) makes it ideal for small communication system installations, co-located to the antenna. In addition, the HILNA LS-C021-D is also available with a bias T compatible option that eliminates the need for a separate power cable run. HILNA LS’s robust power supply also operates over a very broad range, easily allowing the unit to be integrated into systems without regard to power supply precision.
Product Specifications
Specifications Export Classification
ECCN 5A991.B
Specifications Gain Typ
15 dB
Specifications Input Supply Vdc
5 - 15
Specifications Maximum Frequency
3000 MHz
Specifications Minimum Frequency
1000 MHz
Specifications Noise Figure Typ
1.7 dB
Specifications Size Lx W X H
2.50 x 1.75 x 0.75 Inch
Specifications Weight
3 oz
