Hilna™ V1 Low Noise Amplifier
Hilna™ V1 Low Noise Amplifier
SKU:HIG-cc80ad
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hilna™ V1 Low Noise Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
Hilna™ V1 Low Noise Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

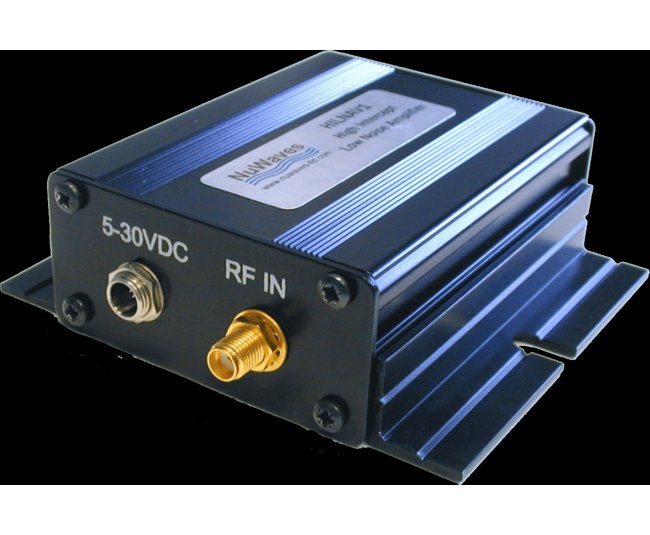

This high-performance module delivers 20 dB of gain across the frequency range of 50 MHz to 1000 MHz with an OIP3 of +32 dBm and less than 1 dB of noise figure. NuWaves’ HILNA V1™ is the first in its class of broadband low noise amplifiers designed to achieve high gain while maintaining low noise and a high third-order intercept point from VHF to microwave frequencies. HILNA V1’s robust power supply also operates over a very broad range, easily allowing the unit to be integrated into systems without regard to power supply precision. To order with mounting flanges, please request P/N: HILNA-V1-M/F.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
20 dB
Specifications Input Supply Vdc
5 - 20
Specifications Maximum Frequency
1000 MHz
Specifications Minimum Frequency
50 MHz
Specifications Noise Figure Typ
0.8 dB
Specifications Size Lx W X H
3.15 x 2.50 x 1.18 Inch
Specifications Weight
5.7 oz
