Hinge Shaft Mounting Collars
Hinge Shaft Mounting Collars
SKU:FLA-8bc2cc
Securely mount shafts with ease using our Hinge Shaft Collars, perfect for fast operations in challenging environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Hinge Shaft Mounting Collars
$24.99
Quantity: 1
Claim Your Seller Account
Hinge Shaft Mounting Collars
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

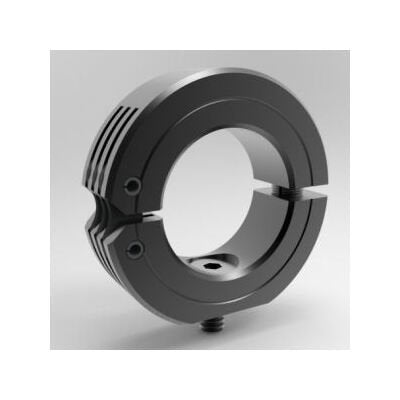

The Hinge Shaft Mounting Collars are designed for securely mounting shafts to surfaces or components. Featuring a flat and countersunk, tapped hole for easy installation, these collars are ideal for fast operation in hostile environments or where space and time constraints are significant. They provide the same axial holding power as conventional collars, are easy to assemble, reposition and disassemble, eliminating wasted time and lost screws. With a smooth bore that protects shafts from damage, these collars come in Steel and Stainless Steel options, ensuring durability and reliability.
Product Specifications
Dimensional Attributes Bore Size
3/4 in
Dimensional Attributes Bottom Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.406 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.15 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
32L012HCP
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026416
