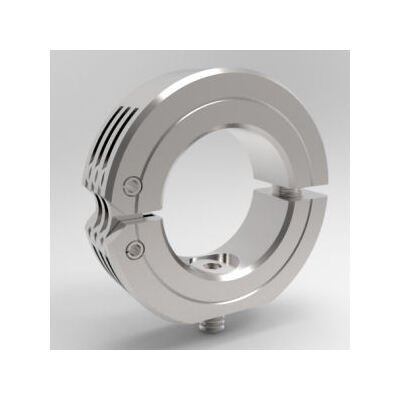

Hinge Shaft Mounting Collars - Stainless Steel
Hinge Shaft Mounting Collars - Stainless Steel
SKU:FLA-164214
Precision Hinge Shaft Mounting Collars for fast, secure, and damage-free shaft assembly in various environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Hinge Shaft Mounting Collars - Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Hinge Shaft Mounting Collars - Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hinge Shaft Mounting Collars are designed for easy and precise shaft mounting on surfaces or components. Featuring a flat and countersunk, tapped hole for secure mounting, these collars are ideal for fast operation in hostile environments. Perfect for standard round shafts or thin wall tubes, they offer easy assembly, repositioning, and disassembly, saving time and ensuring a secure hold. With a smooth bore that protects shafts from damage, these collars provide reliable axial holding power. Stocked in both steel and stainless steel options.
Product Specifications
Dimensional Attributes Bore Size
3/4 in
Dimensional Attributes Bottom Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.406 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.15 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
32S012HCP
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026478
