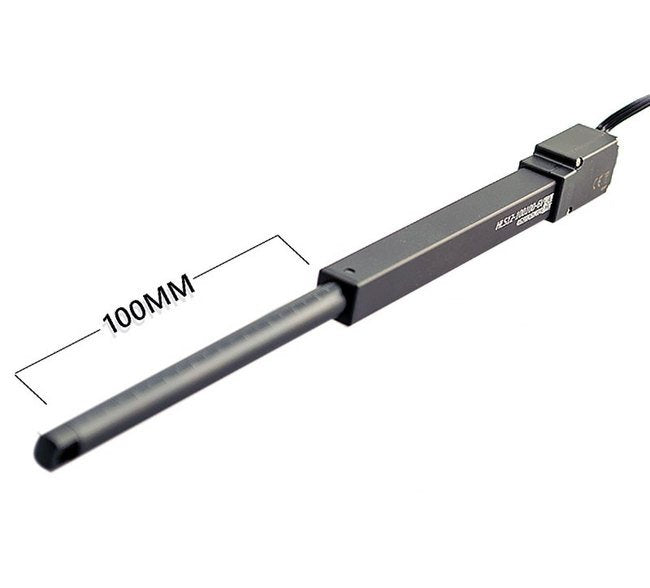

Hitec Linear Electric Rotary Actuator HLS12-100100, 100mm Stroke, 100:1 Gear Ratio
Hitec Linear Electric Rotary Actuator HLS12-100100, 100mm Stroke, 100:1 Gear Ratio
SKU:LIN-effd6e
High-quality electric rotary actuator with 100mm stroke, 100:1 gear ratio, and RoHS compliance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Hitec Linear Electric Rotary Actuator HLS12-100100, 100mm Stroke, 100:1 Gear Ratio
$149.99
Quantity: 1
Claim Your Seller Account
Hitec Linear Electric Rotary Actuator HLS12-100100, 100mm Stroke, 100:1 Gear Ratio
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision and reliability with the Hitec Linear Electric Rotary Actuator HLS12-100100. This high-quality actuator offers a wide range of operating voltage, PWM serial protocol capability, and customizable gear ratios for tailored speed and force requirements. With compliance to RoHS standards, this actuator ensures safety and efficiency in various applications.
Product Specifications
General Specifications Ball Bearing
F693 Flange Bearing
General Specifications Case Material
Engineering Plastic and Hardened Metal
General Specifications Connector Wire Length
160 mm | 6.29 in
General Specifications Controller Mcu
32 Bits
General Specifications Control System
Pulse Width Modulation (PWM)
General Specifications Gear Material
Metal
General Specifications Gear Ratio
100:1
General Specifications Lead Screw Size
5 mm
General Specifications Load Specification
Current | Load | Speed
General Specifications Maximum Efficiency Pint Current
200 mA
General Specifications Maximum Efficiency Pint Load
1.7 kg | 17 N
General Specifications Maximum Efficiency Pint Speed
13.0 mm/s
General Specifications Maximum Force Lifted Current
400 mA
General Specifications Maximum Force Lifted Load
4.2 kg | 42 N
General Specifications Maximum Side Load Extended
15 N
General Specifications Maximum Static Force
200 N
General Specifications Motor Type
Direct Current (DC) Cored
General Specifications No Load Current
100 mA
General Specifications No Load Speed
13.0 mm/s
General Specifications Operating Temperature Range
-10 to +50 ºC
General Specifications Operating Voltage
6.0 V

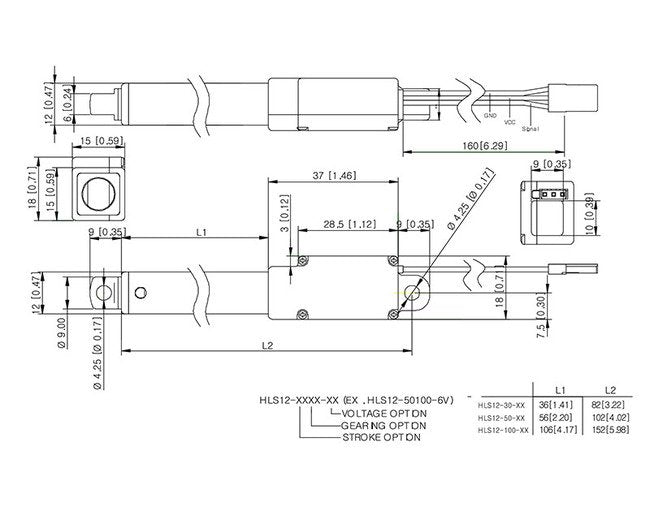

General Specifications Outline Dimensions
152.0 x 15.0 x 18.0 mm | 5.98 x 0.59 x 0.71 in
General Specifications Peak Power Point Current
300 mA
General Specifications Peak Power Point Load
3.1 kg | 31 N
General Specifications Peak Power Point Speed
7.0 mm/s
General Specifications Repeatability
±0.5 mm
General Specifications Stall Current
500 mA
General Specifications Stall Torque
4.2 kg | 42 N
General Specifications Storage Temperature Range
-30 to +80 ºC | -31 to +176 ºF
General Specifications Stroke Specification
100 mm
General Specifications Vibrations At No Load
MIL-STD-810G 514.6C-VII
General Specifications Weight
56 g | 1.98 oz
Specifications Compliance
Restriction of Hazardous Substances (RoHS) 3 Compliant
Specifications Model
HLS12-100100-6V
Specifications Series
Linear
