Hitec Linear Rotary Actuator HLS12-50380
Hitec Linear Rotary Actuator HLS12-50380
SKU:LIN-6992ee
Achieve precise linear motion with the Hitec HLS12-50380 Electric Rotary Actuator. RoHS 3 compliant, PWM control, 380:1 gear ratio.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Hitec Linear Rotary Actuator HLS12-50380
$89.99
Quantity: 1
Claim Your Seller Account
Hitec Linear Rotary Actuator HLS12-50380
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

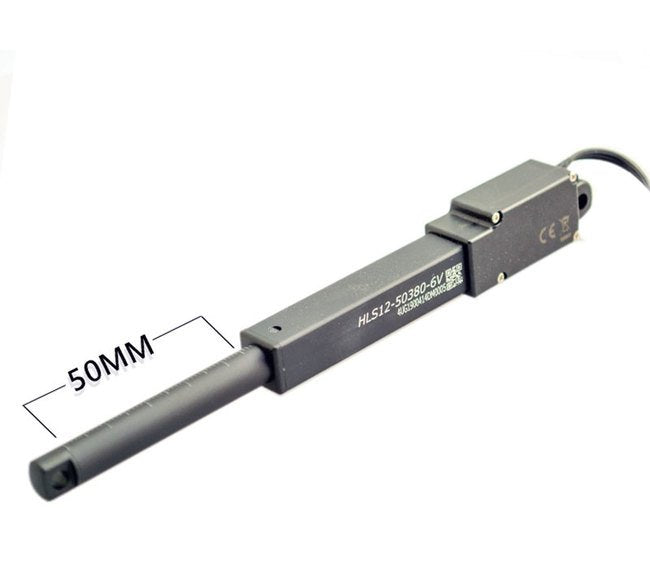

Experience precise linear motion with the Hitec Linear Rotary Actuator HLS12-50380. This 50mm stroke electric actuator boasts a 380:1 gear ratio, delivering excellent repeatability and performance. With a PWM-controlled DC motor and a 32-bit MCU, this actuator offers customizable speed and force options. Meeting RoHS 3 compliance standards, this actuator is engineered with reliability and quality in mind.
Product Specifications
General Specifications Ball Bearing
F693 Flange Bearing
General Specifications Case Material
Engineering Plastic and Hardened Metal
General Specifications Connector Wire Length
160 mm | 6.29 in
General Specifications Controller Mcu
32 Bits
General Specifications Control System
Pulse Width Modulation (PWM)
General Specifications Gear Material
Metal
General Specifications Gear Ratio
380:1
General Specifications Lead Screw Size
5 mm
General Specifications Load Specification
Current | Load | Speed
General Specifications Maximum Efficiency Pint Current
200 mA
General Specifications Maximum Efficiency Pint Load
6.5 kg | 65 N
General Specifications Maximum Efficiency Pint Speed
2.5 mm/s
General Specifications Maximum Force Lifted Current
400 mA
General Specifications Maximum Force Lifted Load
15.0 kg | 130 N
General Specifications Maximum Force Lifted Speed
1.2 mm/s
General Specifications Maximum Side Load Extended
30 N
General Specifications Maximum Static Force
200 N
General Specifications Motor Type
Direct Current (DC) Cored
General Specifications No Load Current
100 mA
General Specifications No Load Speed
3.3 mm/s
General Specifications Operating Temperature Range
-10 to +50 ºC
General Specifications Operating Voltage
6.0 V

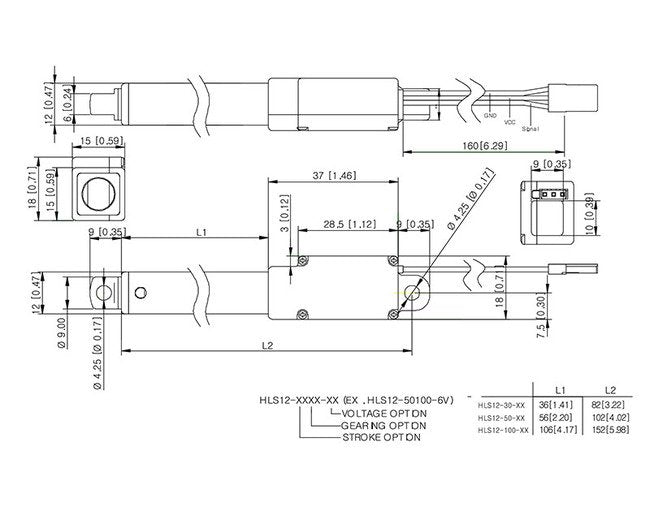

General Specifications Outline Dimensions
102.0 x 15.0 x 18.0 mm | 4.02 x 0.59 x 0.71 in
General Specifications Peak Power Point Current
300 mA
General Specifications Peak Power Point Load
10.0 kg | 100 N
General Specifications Peak Power Point Speed
1.9 mm/s
General Specifications Repeatability
±0.3 mm
General Specifications Stall Current
500 mA
General Specifications Stall Torque
18.0 kg | 180 N
General Specifications Storage Temperature Range
-30 to +80 ºC | -31 to +176 ºF
General Specifications Stroke Specification
50 mm
General Specifications Vibrations At No Load
MIL-STD-810G 514.6C-VII
General Specifications Weight
40 g | 1.41 oz
Specifications Compliance
Restriction of Hazardous Substances (RoHS) 3 Compliant
Specifications Model
HLS12-50380-6V
Specifications Series
Linear
