Hitec Linear Series HLS12-10050 Electric Rotary Actuator
Hitec Linear Series HLS12-10050 Electric Rotary Actuator
SKU:LIN-314d7b
Precision and performance in one: Hitec Linear Series Electric Rotary Actuator - 50:1 gear ratio, 100mm stroke, RoHS 3 compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Hitec Linear Series HLS12-10050 Electric Rotary Actuator
$89.99
Quantity: 1
Claim Your Seller Account
Hitec Linear Series HLS12-10050 Electric Rotary Actuator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

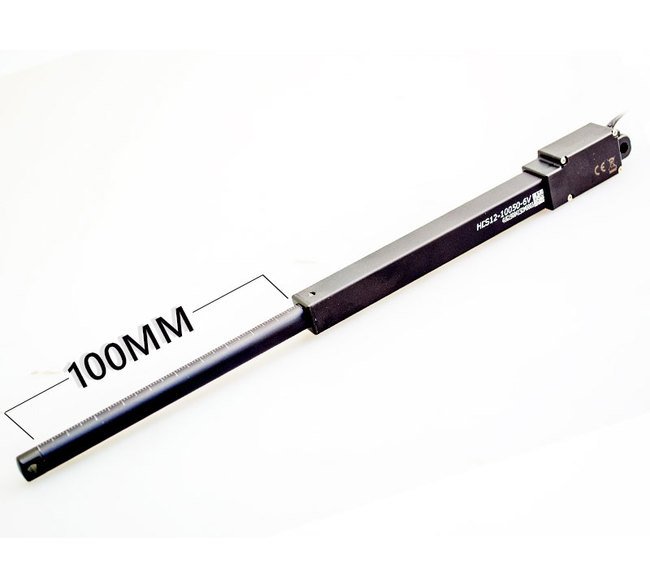

Experience precision and performance with the Hitec Linear Series Model HLS12-10050 Electric Rotary Actuator. This high-quality actuator features a 50:1 gear ratio, 100mm stroke, and operates at an optimal 6.0V. With PWM serial protocol capability and customizable speed and force options, this actuator ensures accurate repeatability for a range of applications. Built for reliability and compliance, the HLS12-10050 is RoHS 3 compliant, meeting industry standards for quality and safety.
Product Specifications
General Specifications Ball Bearing
F693 Flange Bearing
General Specifications Case Material
Engineering Plastic and Hardened Metal
General Specifications Connector Wire Length
160 mm | 6.29 in
General Specifications Controller Mcu
32 Bits
General Specifications Control System
Pulse Width Modulation (PWM)
General Specifications Gear Material
Metal
General Specifications Gear Ratio
50:1
General Specifications Lead Screw Size
5 mm
General Specifications Load Specification
Current | Load | Speed
General Specifications Maximum Efficiency Pint Current
200 mA
General Specifications Maximum Efficiency Pint Load
1.0 kg | 10 N
General Specifications Maximum Efficiency Pint Speed
19.0 mm/s
General Specifications Maximum Force Lifted Current
400 mA
General Specifications Maximum Force Lifted Load
2.2 kg | 22 N
General Specifications Maximum Force Lifted Speed
6.65 mm/s
General Specifications Maximum Side Load Extended
15 N
General Specifications Maximum Static Force
200 N
General Specifications Motor Type
Direct Current (DC) Cored
General Specifications No Load Current
100 mA
General Specifications No Load Speed
25.0 mm/s
General Specifications Operating Temperature Range
-10 to +50 ºC
General Specifications Operating Voltage
6.0 V

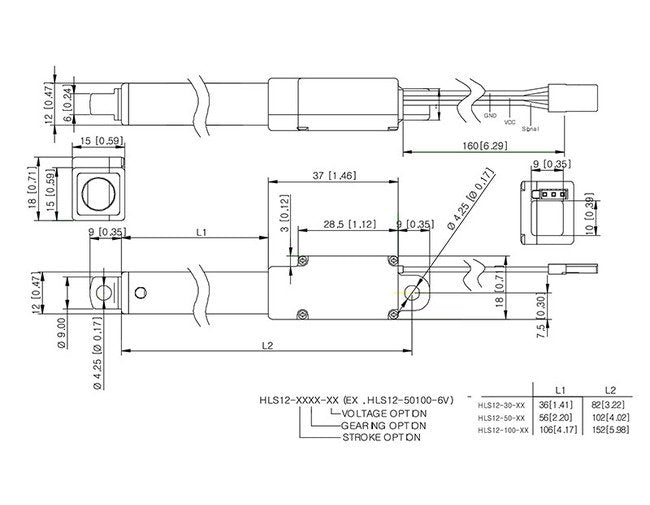

General Specifications Outline Dimensions
152.0 x 15.0 x 18.0 mm | 5.98 x 0.59 x 0.71 in
General Specifications Peak Power Point Current
300 mA
General Specifications Peak Power Point Load
1.7 kg | 17 N
General Specifications Peak Power Point Speed
14.0 mm/s
General Specifications Repeatability
±0.5 mm
General Specifications Stall Current
500 mA
General Specifications Stall Torque
2.5 kg | 25 N
General Specifications Storage Temperature Range
-30 to +80 ºC | -31 to +176 ºF
General Specifications Stroke Specification
100 mm
General Specifications Vibrations At No Load
MIL-STD-810G 514.6C-VII
General Specifications Weight
56 g | 1.98 oz
Specifications Compliance
Restriction of Hazardous Substances (RoHS) 3 Compliant
Specifications Model
HLS12-10050-6V
Specifications Series
Linear
