Hitec Linear Series HLS12-30100 Electric Rotary Actuator
Hitec Linear Series HLS12-30100 Electric Rotary Actuator
SKU:LIN-043485
Achieve precision with the Hitec Linear Series Model HLS12-30100 Electric Rotary Actuator, ideal for controlled motion applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Hitec Linear Series HLS12-30100 Electric Rotary Actuator
$89.99
Quantity: 1
Claim Your Seller Account
Hitec Linear Series HLS12-30100 Electric Rotary Actuator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

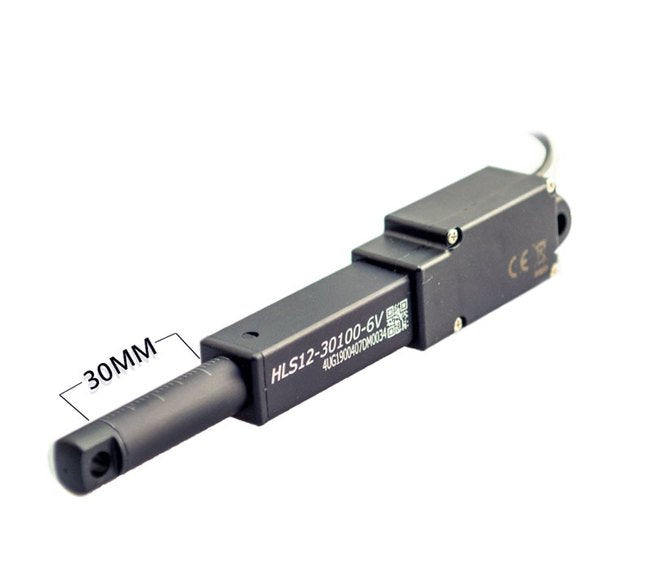

The Hitec Linear Series Model HLS12-30100 Electric Rotary Actuator offers precise motion control with a 100:1 gear ratio and a 30mm stroke. Operating at 6.0V, this actuator features a DC cored motor, PWM control system, and a 32-bit MCU controller for superior performance. With a maximum force of 42N and compliance with RoHS 3 standards, this actuator ensures reliability and accuracy in a compact and lightweight design.
Product Specifications
General Specifications Ball Bearing
F693 Flange Bearing
General Specifications Case Material
Engineering Plastic and Hardened Metal
General Specifications Connector Wire Length
160 mm | 6.29 in
General Specifications Controller Mcu
32 Bits
General Specifications Control System
Pulse Width Modulation (PWM)
General Specifications Gear Material
Metal
General Specifications Gear Ratio
100:1
General Specifications Lead Screw Size
5 mm
General Specifications Load Specification
Current | Load | Speed
General Specifications Maximum Efficiency Pint Current
200 mA
General Specifications Maximum Efficiency Pint Load
1.7 kg | 17 N
General Specifications Maximum Efficiency Pint Speed
13.0 mm/s
General Specifications Maximum Force Lifted Current
400 mA
General Specifications Maximum Force Lifted Load
4.2 kg | 42 N
General Specifications Maximum Side Load Extended
40 N
General Specifications Maximum Static Force
200 N
General Specifications Motor Type
Direct Current (DC) Cored
General Specifications No Load Current
100 mA
General Specifications No Load Speed
13.0 mm/s
General Specifications Operating Temperature Range
-10 to +50 ºC
General Specifications Operating Voltage
6.0 V

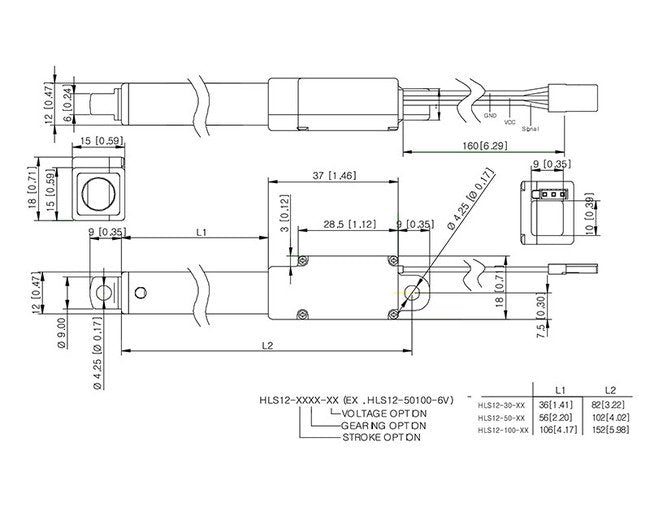

General Specifications Outline Dimensions
82.0 x 15.0 x 18.0 mm | 3.23 x 0.59 x 0.71 in
General Specifications Peak Power Point Current
300 mA
General Specifications Peak Power Point Load
3.1 kg | 31 N
General Specifications Peak Power Point Speed
7.0 mm/s
General Specifications Repeatability
±0.2 mm
General Specifications Stall Current
500 mA
General Specifications Stall Torque
4.2 kg | 42 N
General Specifications Storage Temperature Range
-30 to +80 ºC | -31 to +176 ºF
General Specifications Stroke Specification
30 mm
General Specifications Vibrations At No Load
MIL-STD-810G 514.6C-VII
General Specifications Weight
34 g | 1.20 oz
Specifications Compliance
Restriction of Hazardous Substances (RoHS) 3 Compliant
Specifications Model
HLS12-30100-6V
Specifications Series
Linear
