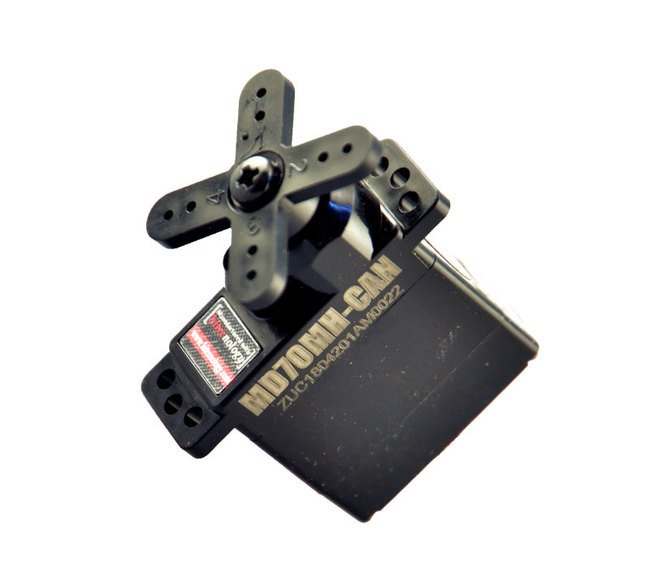

Hitec MD70MH Rotary Actuator with UAVCAN/CAN Control, 20mm Size
Hitec MD70MH Rotary Actuator with UAVCAN/CAN Control, 20mm Size
SKU:MDS-7b5572
High-performance MD70MH Rotary Actuator with customizable CAN control, IP-65 rating, and ISO & RoHS compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hitec MD70MH Rotary Actuator with UAVCAN/CAN Control, 20mm Size
$129.99
Quantity: 1
Claim Your Seller Account
Hitec MD70MH Rotary Actuator with UAVCAN/CAN Control, 20mm Size
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hitec MD Series Model MD70MH-UAVCAN/CAN 20mm Cored High Voltage Metal Gear Electric Rotary Actuator offers unparalleled performance and customizability. Engineered with coreless motors and magnetic encoder position sensors, this actuator boasts an IP-65 rating for water and dust resistance. With a voltage range of 4.8 to 7.2 volts and CAN 2.0 A/B or UAVCAN control options, it provides precise control and reliability. Meeting International Organization for Standardization (ISO) 14001:2015 and 9001:2015 standards, as well as RoHS 3 compliance, this actuator ensures quality and environmental responsibility.
Product Specifications
Control System Available Node Id For Protocol Mode Can Bus Exten
0 to 2147483647
Control System Available Node Id For Protocol Mode Can Bus Stand
0 to 65535
Control System Available Node Id For Protocol Mode Can Bus Uavca
1 to 127
Control System Available Servo Id
0 to 254
Control System Baud Rate Can Bus
10 kB/s to 1 MB/s
Control System Input Signal Voltage Range
-12 to 12 V
Control System Protocol Mode Can Bus
Extended 2.0B | Standard 2.0A | UAVCAN
Control System Sample Point
50 % | 87.5 %
General Specifications Ball Bearing
Single Ball Bearing / MR85
General Specifications Case Material
Engineering Plastic
General Specifications Connector Wire Length
300 mm | 11.81 in
General Specifications Controller Mcu
32 Bits
General Specifications Gear Material
1 Resin and 4 Metal Gears
General Specifications Horn Gear Spline
M25T (25 Segment Ø5.0)
General Specifications Maximum Gear Train Backlash
0.5 º
General Specifications Motor Type
Cored
General Specifications Operating Temperature Range
-20 to +60 ºC | -4 to +140 ºF
General Specifications Operating Voltage Range
4.8 to 7.4 V

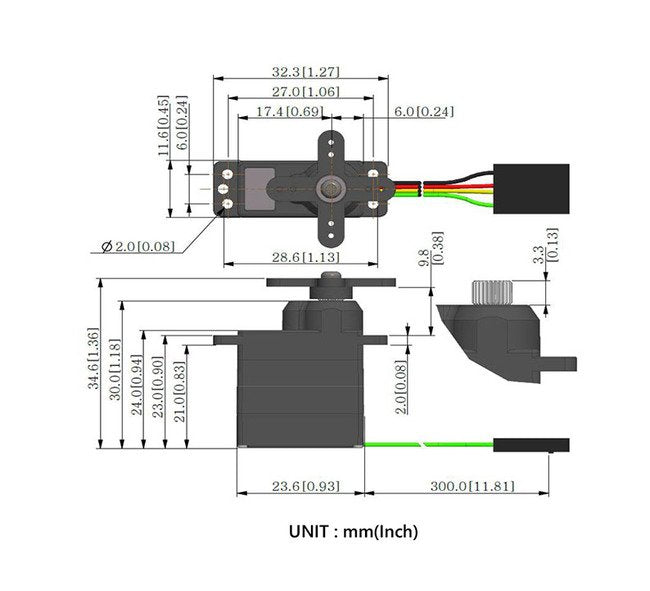

General Specifications Outline Dimensions
23.6 x 11.6 x 30.0 mm | 0.92 x 0.45 x 1.18 in
General Specifications Position Sensor Type
Contactless Encorder
General Specifications Splined Horns
MS-X25
General Specifications Storage Temperature Range
-30 to +80 ºC | -31 to +176 ºF
General Specifications Vibrations At No Load
MIL-STD-810G 514.6C-VII
Specifications Size
20 mm
Travel Pos Command For Turn Mode Power On
0
Travel Pos Unit Degree For Turn Mode Power On
0
Voltage Dead Band At 60 Volt V Voltage
4 Step
Voltage Dead Band At 74 Volt V Voltage
4 Step
Voltage No Load Running Current At 60 Volt V Voltage
200 mA
Voltage No Load Running Current At 74 Volt V Voltage
240 mA
Voltage No Load Speed At 60 Volt V Voltage
0.15 sec/60º (400 º/sec) (66.7 rpm)
Voltage No Load Speed At 74 Volt V Voltage
0.12 sec/60º (500 º/sec) (83.3 rpm)
Voltage Stall Current At 60 Volt V Voltage
1,000 mA
Voltage Stall Current At 74 Volt V Voltage
1,300 mA
Voltage Stall Torque At 60 Volt V Voltage
3.1 kg·cm | 43.28 oz·in
Voltage Stall Torque At 74 Volt V Voltage
3.8 kg·cm | 53.06 oz·in
Voltage Standing Current At 60 Volt V Voltage
30 mA
Voltage Standing Current At 74 Volt V Voltage
30 mA
Voltage Voltage
6.0 V | 7.4 V
