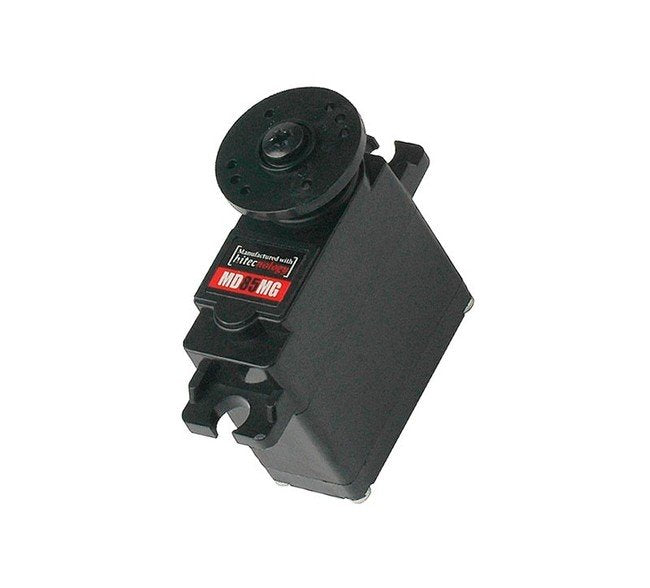

Hitec MD85MG Electric Rotary Actuator - High Torque Metal Gear
Hitec MD85MG Electric Rotary Actuator - High Torque Metal Gear
SKU:MDS-9c8d78
Compact, high-torque electric rotary actuator with customizable control options and ISO-compliant design.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Hitec MD85MG Electric Rotary Actuator - High Torque Metal Gear
$89.99
Quantity: 1
Claim Your Seller Account
Hitec MD85MG Electric Rotary Actuator - High Torque Metal Gear
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hitec MD Series Model MD85MG-UAVCAN/CAN boasts a compact 20mm size, designed for precision performance with coreless motors and magnetic encoders. Its IP-65 rating ensures durability in harsh environments. Offering a voltage range of 4.8V to 6.0V and various control options including CAN BUS and UAVCAN protocols, this actuator delivers customizable, high-torque operation. Meeting ISO 14001:2015 and ISO 9001:2015 standards, it guarantees quality and compliance with RoHS regulations. Customization options are available to suit specific requirements.
Product Specifications
Control System Available Node Id For Protocol Mode Can Bus Exten
0 to 2147483647
Control System Available Node Id For Protocol Mode Can Bus Stand
0 to 65535
Control System Available Node Id For Protocol Mode Can Bus Uavca
1 to 127
Control System Available Servo Id
0 to 254
Control System Baud Rate Can Bus
10 kB/s to 1 MB/s
Control System Input Signal Voltage Range
-12 to 12 V
Control System Protocol Mode Can Bus
Extended 2.0B | Standard 2.0A | UAVCAN
Control System Sample Point
50 % | 87.5 %
General Specifications Ball Bearing
Single Ball Bearing / MR106
General Specifications Case Material
Engineering Plastic
General Specifications Connector Wire Length
300 mm | 11.81 in
General Specifications Controller Mcu
32 Bits
General Specifications Gear Material
5 Metal Gears
General Specifications Horn Gear Spline
H25T (25 Segment Ø6.0)
General Specifications Maximum Gear Train Backlash
0.5 º
General Specifications Motor Type
Cored
General Specifications Operating Temperature Range
-20 to +60 ºC | -4 to +140 ºF
General Specifications Operating Voltage Range
4.8 to 6.0 V

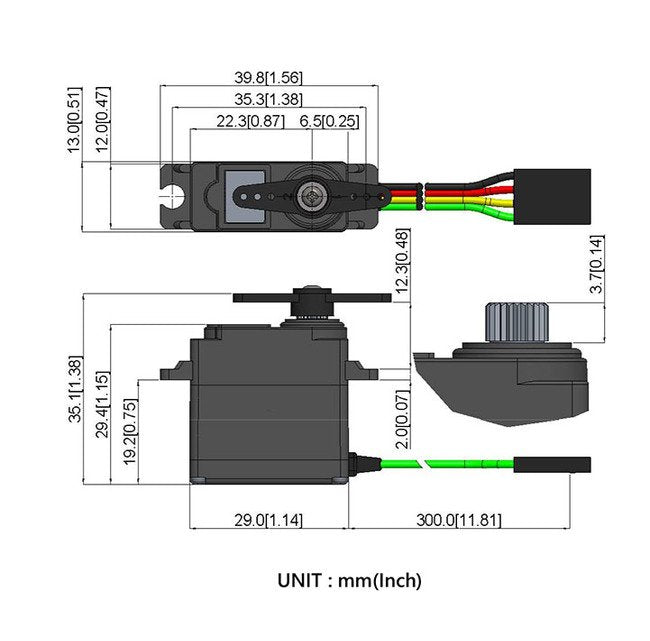

General Specifications Outline Dimensions
29.0 x 13.0 x 30.0 mm | 1.14 x 0.51 x 1.18 in
General Specifications Position Sensor Type
Contactless Encorder
General Specifications Splined Horns
M-I
General Specifications Storage Temperature Range
-30 to +80 ºC | -31 to +176 ºF
General Specifications Vibrations At No Load
MIL-STD-810G 514.6C-VII
Specifications Size
20 mm
Travel Pos Command For Turn Mode Power On
0
Travel Pos Unit Degree For Turn Mode Power On
0
Voltage Dead Band At 48 Volt V Voltage
4 Step
Voltage Dead Band At 60 Volt V Voltage
4 Step
Voltage No Load Running Current At 48 Volt V Voltage
320 mA
Voltage No Load Running Current At 60 Volt V Voltage
380 mA
Voltage No Load Speed At 48 Volt V Voltage
0.17 sec/60º (348 º/sec) (58 rpm)
Voltage No Load Speed At 60 Volt V Voltage
0.13 sec/60º (456 º/sec) (76 rpm)
Voltage Stall Current At 48 Volt V Voltage
1,500 mA
Voltage Stall Current At 60 Volt V Voltage
1,800 mA
Voltage Stall Torque At 48 Volt V Voltage
3.6 kg·cm | 50.0 oz·in
Voltage Stall Torque At 60 Volt V Voltage
4.3 kg·cm | 59.7 oz·in
Voltage Standing Current At 48 Volt V Voltage
30 mA
Voltage Standing Current At 60 Volt V Voltage
30 mA
Voltage Voltage
4.8 V | 6.0 V
