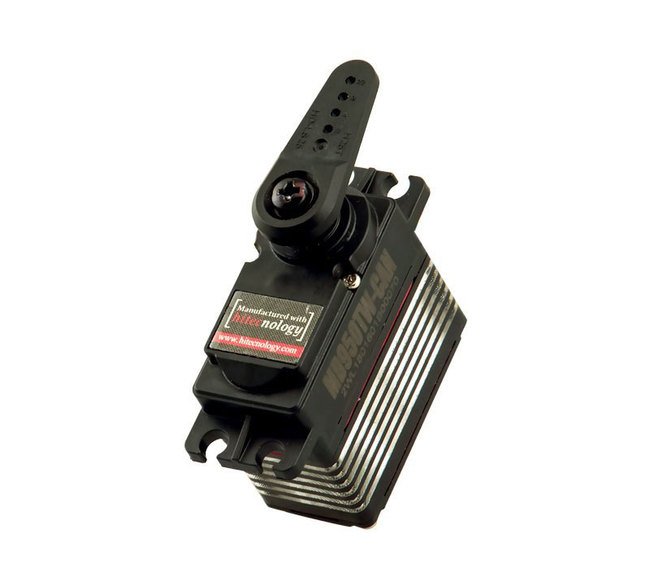

The Hitec MD Series Model MD950TW-UAVCAN/CAN 20mm Coreless Electric Rotary Actuator offers exceptional performance with coreless motors, magnetic encoder position sensors, and IP-65 water and dust-proof rating. With a 4.8V to 7.2V voltage range, CAN 2.0 A/B or UAVCAN control options, this actuator provides precise positioning and reliable operation. Compliance with ISO 14001:2015, ISO 9001:2015, and RoHS ensures environmental responsibility and product quality. Customization available upon request, making it ideal for a wide range of applications in government, institutional, and industrial settings.
Product Specifications
Control System Available Node Id For Protocol Mode Can Bus Exten
0 to 2147483647
Control System Available Node Id For Protocol Mode Can Bus Stand
0 to 65535
Control System Available Node Id For Protocol Mode Can Bus Uavca
1 to 127
Control System Available Servo Id
0 to 254
Control System Baud Rate Can Bus
10 kB/s to 1 MB/s
Control System Input Signal Voltage Range
-12 to 12 V
Control System Protocol Mode Can Bus
Extended 2.0B | Standard 2.0A | UAVCAN
Control System Sample Point
50 % | 87.5 %
General Specifications Ball Bearing
Dual Ball Bearing / MR106
General Specifications Case Material
Engineering Plastic and Hardened Metal
General Specifications Connector Wire Length
300 mm | 11.81 in
General Specifications Controller Mcu
32 Bits
General Specifications Gear Material
1 Metal + Plastic and 3 Titanium Alloy
General Specifications Horn Gear Spline
H25T (25 Segment Ø6.0)
General Specifications Maximum Gear Train Backlash
0.5 º
General Specifications Operating Voltage Range
4.8 to 7.4 V

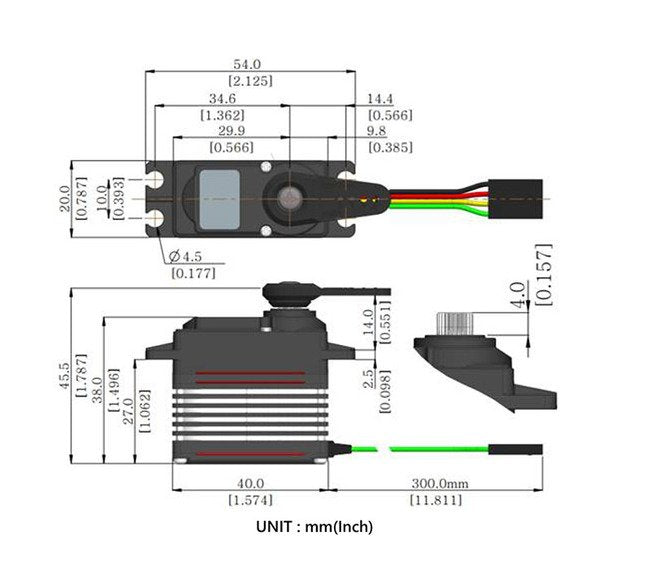

General Specifications Outline Dimensions
40.0 x 20.0 x 38.0 mm | 1.57 x 0.79 x 1.50 in
Specifications Size
20 mm
Travel Pos Command For Turn Mode Power On
0
Travel Pos Unit Degree For Turn Mode Power On
0
Voltage Dead Band At 48 Volt V Voltage
4 Step
Voltage Dead Band At 60 Volt V Voltage
4 Step
Voltage Dead Band At 74 Volt V Voltage
4 Step
Voltage No Load Running Current At 48 Volt V Voltage
300 mA
Voltage No Load Running Current At 60 Volt V Voltage
390 mA
Voltage No Load Running Current At 74 Volt V Voltage
500 mA
Voltage No Load Speed At 48 Volt V Voltage
0.23 sec/60º (261 º/sec) (44 rpm)
Voltage No Load Speed At 60 Volt V Voltage
0.17 sec/60º (353 º/sec) (59 rpm)
Voltage No Load Speed At 74 Volt V Voltage
0.14 sec/60º (429 º/sec) (72 rpm)
Voltage Stall Current At 48 Volt V Voltage
3,700 mA
Voltage Stall Current At 60 Volt V Voltage
4,800 mA
Voltage Stall Current At 74 Volt V Voltage
6,200 mA
Voltage Stall Torque At 48 Volt V Voltage
21.0 kg·cm | 291.63 oz·in
Voltage Stall Torque At 60 Volt V Voltage
29.0 kg·cm | 402.73 oz·in
Voltage Stall Torque At 74 Volt V Voltage
35.0 kg·cm | 486.05 oz·in
Voltage Standing Current At 48 Volt V Voltage
30 mA
Voltage Standing Current At 60 Volt V Voltage
30 mA
Voltage Standing Current At 74 Volt V Voltage
30 mA
Voltage Voltage
4.8 V | 6.0 V | 7.4 V
