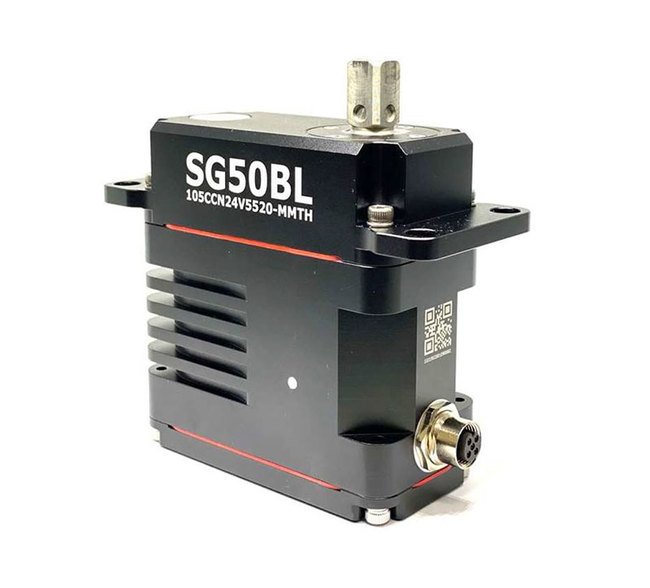

Hitec SG Series Waterproof Brushless Steel Gear Electric Rotary Actuator
Hitec SG Series Waterproof Brushless Steel Gear Electric Rotary Actuator
SKU:SGS-7b4d0b
Enhance automation with the reliable Hitec SG Series Waterproof Brushless Steel Gear Electric Rotary Actuator. Customizable for your specific needs.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Hitec SG Series Waterproof Brushless Steel Gear Electric Rotary Actuator
$499.99
Quantity: 1
Claim Your Seller Account
Hitec SG Series Waterproof Brushless Steel Gear Electric Rotary Actuator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance automation with the Hitec SG Series Waterproof Brushless Steel Gear Electric Rotary Actuator. Featuring a durable aluminum alloy case, steel gears with ball bearing, and contactless position sensor, this actuator ensures reliability in demanding environments. With an IP68 waterproof rating, operating voltage range of 18-32 volts, and compliance with ISO 14001:2015 and RoHS 3 standards, it meets the stringent requirements of industrial, robotic, and UAV applications. Customization options available upon request for tailored solutions.
Product Specifications

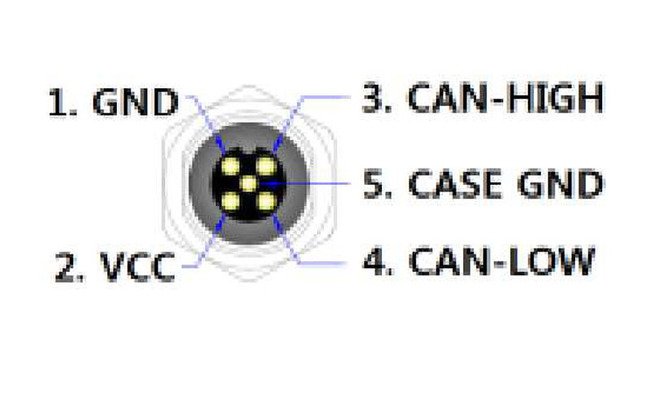

Connector Manufacturer
TE Connectivity AMP Connectors
Connector Manufacturer Part Number
T4131012051-000
Environmental Specifications Emc Standard
International Special Committee on Radio Interference (CISPR) 16-1, 2International Electrotechnical Commission (IEC) 61000-4-2, 4, 6
Environmental Specifications Humidity
95% at 35 ºC ~ 60 ºC at 300 h - MIL-STD-810G Method 507.5
Environmental Specifications Mean Time To Failure Mttf
> 500 h
Environmental Specifications Mechanical Shock
Procedure 1 - Functional Shock 20 g, 11 ms, Sawtooth Waveform
Environmental Specifications Operation Temperature
-30 ºC (-22 ºF) - MIL-STD-810G Method 502.5+70 ºC (+158 ºF) - MIL-STD-810G Method 501.5
Environmental Specifications Storage Temperature
-40 ºC (-40 ºF) - MIL-STD-810G Method 502.5+80 ºC (+176 ºF) - MIL-STD-810G Method 501.5
Environmental Specifications Test Method For Mechanical Shock
MIL-STD-810G 516.6
Environmental Specifications Test Method For Variation
MIL-STD-810G 514.6C-VIIEuropean Standards (EN) 60068-2-6
Environmental Specifications Test Method For Water And Dust Prot
International Electrotechnical Commission (IEC) 60529
Environmental Specifications Variation Acceleration
30G
Environmental Specifications Variation Displacement
5 mm
Environmental Specifications Variation Frequency
50 to 500 Hz
Environmental Specifications Variation Orthogonal Axes
±X | ±Y | ±Z
Environmental Specifications Variation Sweep Duration
5 min
Environmental Specifications Water And Dust Protected Standard
Ingress Protection (IP68)
Features
Contactless position sensorDurable aluminum alloy case & Steel gears with ball bearing & Heat treatmentWaterproof & Dust resistance (IP68)
General Specifications Control System
CAN 2.0 A, B / UAVCAN
General Specifications Idle Current At Stopped
45 mA
General Specifications Input Signal
CAN Data Protocol
General Specifications Motor Type
Brushless Programmable Digital Circuitry (BLDC) Motor
General Specifications Multi Turn
±32,760 Turn
General Specifications No Load Speed
120 º/sec | 0.5 Second Per 60 Degree
General Specifications Operating Voltage Range
18.0 to 32.0 V
General Specifications Position Type
Contactless
General Specifications Rated Torque
104.0 kgf·cm | 1444.288 ozf·in
General Specifications Running Current At No Load
300 mA
General Specifications Stall Current
10 A
General Specifications Stall Torque
520.0 kgf·cm | 7221.441 ozf·in
General Specifications Standard Operating Travel
±150 º
General Specifications Test Voltage
24.0 V
General Specifications Te Connectivity Connector
T4131012051-000
Mechanical Features Ball Bearing
4 Angular Ball Bearing and 9 Needle Bearing

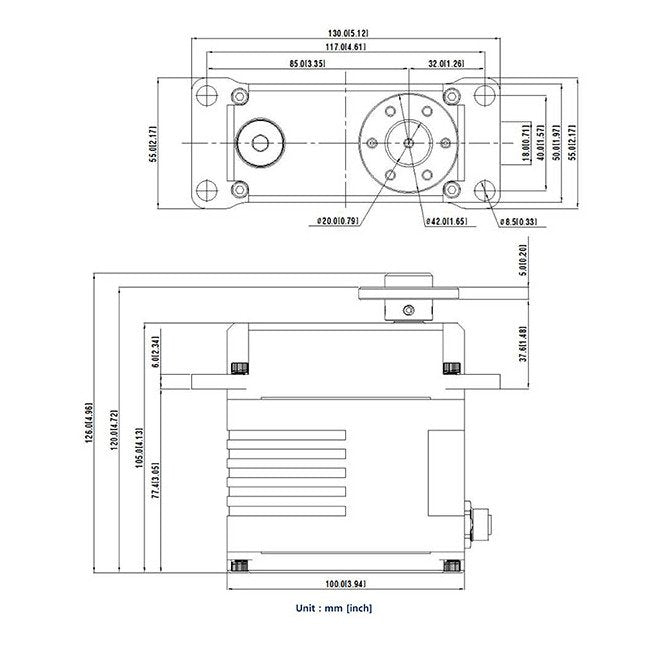

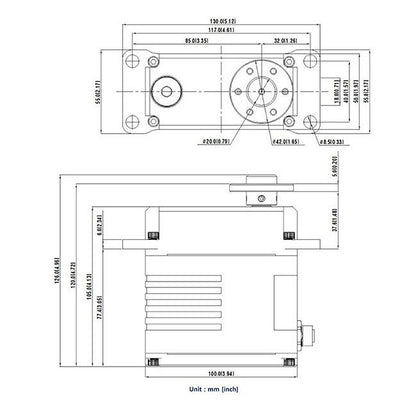

Mechanical Features Dimensions
3.93 x 1.968 x 4.13 in | 100 x 50.0 x 105 mm
Mechanical Features Dimensions Tolerance
±0.2 mm
Mechanical Features Gear Reduction
Durable Hardened Steel with Gear Protection
Mechanical Features Gear Train Backlash
< 0.5 º

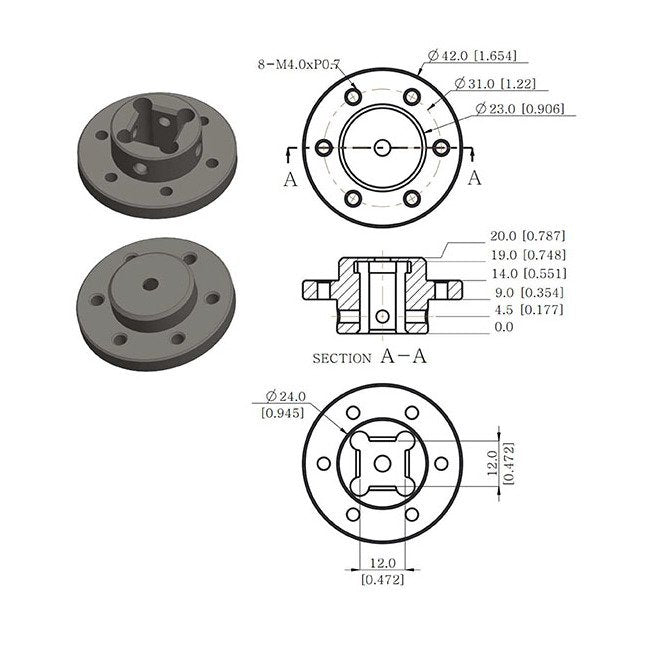

Mechanical Features Horn Gear Spline
Square 12 x 12
