Hole-R1 Utility Diamond Chipbreaker, Thickness 0.256/0.262 in
Hole-R1 Utility Diamond Chipbreaker, Thickness 0.256/0.262 in
SKU:TUR-ab961e
Premium Hole-R1 Diamond Chipbreaker for precise roughing operations, meets Federal/DoD standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hole-R1 Utility Diamond Chipbreaker, Thickness 0.256/0.262 in
$29.99
Quantity: 1
Claim Your Seller Account
Hole-R1 Utility Diamond Chipbreaker, Thickness 0.256/0.262 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hole-R1 Utility Diamond Chipbreaker is a precision-engineered turning tool designed for roughing operations with an inscribed circle of 0.622/0.628 in and a radius of 3/64 in. Featuring a durable construction, it ensures consistent performance and chip control. This chipbreaker meets Federal/DoD procurement standards for quality and reliability, making it ideal for government and institutional buyers.

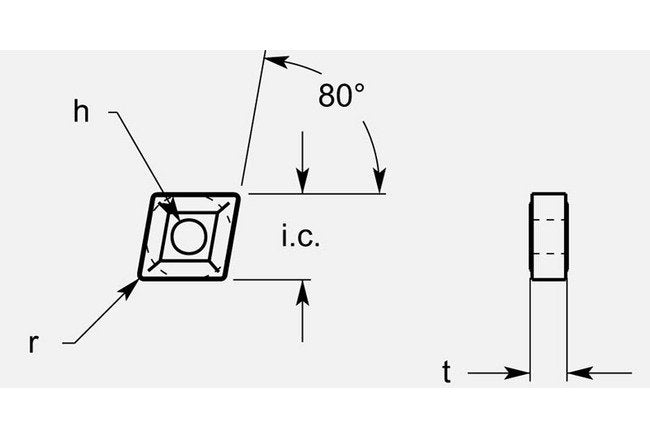

Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.256 / 0.262 in
Grade Availability Grade Availability
Available on Request
