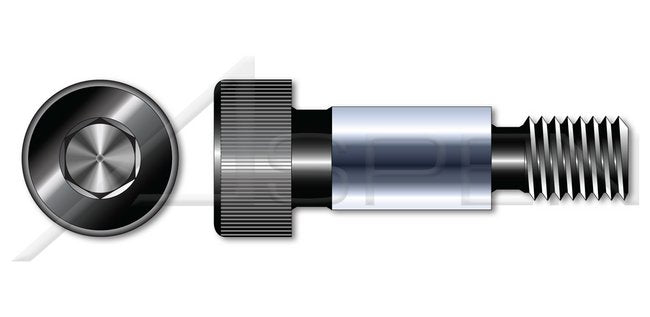

Holo-Krome® Alloy Steel Black Oxide Hex Socket Drive Shoulder Screw

Name: Holo-Krome® Alloy Steel Black Oxide Hex Socket Drive Shoulder Screw
Brand: Aspen Fasteners
SKU: SCR-c91b87
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-c91b87

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Shoulder Screws are machine threaded screws with a cylindrical head and an unthreaded shoulder between the head and threads. The shoulder diameter is slightly larger than the thread diameter. Shoulder Screw dimensions are called out by the shoulder diameter and then by the shoulder length. The thread diameter is a functions of the shoulder diameter. Also known as Shoulder Bolts or Stripper Bolts.

Product Specifications

Additional Information

Superior quality parts by Holo-Krome, made in the U.S.A.Shoulder screws are also known as shoulder bolts or stripper bolts.The shoulder acts as a shaft or dowel for rotating items such as bearings or bushings.An internal hex socket drive is also known as an Allen drive.Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.

Specifications Coating

Oxidized

Specifications Coating Color

Black

Specifications Country Of Origin

Made in U.S.A.

Specifications Drive Style

Hex Socket Drive

Specifications Hardness Rating

Rockwell C32-C43

Specifications Head Style

Cylindrical Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.3)

Specifications Material

Steel

Specifications Material Grade

Alloy Steel

Specifications Material Processes

Heat Treated

Specifications System Of Measurement

Inch

Specifications Threading

Thread Class 3A

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Pitch

UNRC Coarse Thread

Holo-Krome® Alloy Steel Black Oxide Hex Socket Drive Shoulder Screw
