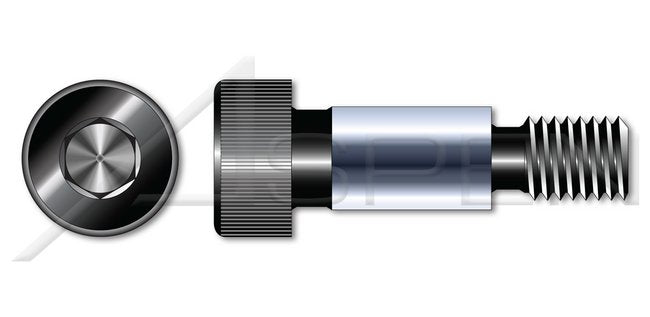

Holo-Krome® Class 12.9 Steel Black Oxide Metric Hex Socket Drive Shoulder Screw

Name: Holo-Krome® Class 12.9 Steel Black Oxide Metric Hex Socket Drive Shoulder Screw
Brand: Aspen Fasteners
SKU: SCR-a5412b
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-a5412b

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Shoulder Screws are machine threaded screws with a cylindrical head and an unthreaded shoulder between the head and threads. The shoulder diameter is slightly larger than the thread diameter. Shoulder Screw dimensions are called out by the shoulder diameter and then by the shoulder length. The thread diameter is a functions of the shoulder diameter. Also known as Shoulder Bolts or Stripper Bolts.

Product Specifications

Additional Information

Superior quality parts by Holo-Krome, made in the U.S.A.Shoulder screws are also known as shoulder bolts or stripper bolts.The shoulder acts as a shaft or dowel for rotating items such as bearings or bushings.An internal hex socket drive is also known as an Allen drive.Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).

Specifications Coating

Oxidized

Specifications Coating Color

Black

Specifications Country Of Origin

Made in U.S.A.

Specifications Drive Style

Hex Socket Drive

Specifications Head Style

Cylindrical Head

Specifications Industry Standards And Specifications

International Organization for Standardization (ISO 7379)

Specifications Material

Steel

Specifications Material Grade

Class 12.9 Steel

Specifications Material Processes

Heat Treated

Specifications System Of Measurement

Metric

Specifications Threading

Thread Class ANSI B1.13M

Specifications Thread Direction

Right-Hand Thread

Specifications Tolerance

Tolerance h8

Holo-Krome® Class 12.9 Steel Black Oxide Metric Hex Socket Drive Shoulder Screw
