Hope Electrical H1200 Unflanged Junction & Pull Box
Hope Electrical H1200 Unflanged Junction & Pull Box
SKU:H12-89f4c4
Durable Hope Electrical H1200 Unflanged Junction & Pull Box - NEMA 4 and NEMA 3R compliant, ideal for institutional use.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
Hope Electrical H1200 Unflanged Junction & Pull Box
$389.99
Quantity: 1
Claim Your Seller Account
Hope Electrical H1200 Unflanged Junction & Pull Box
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

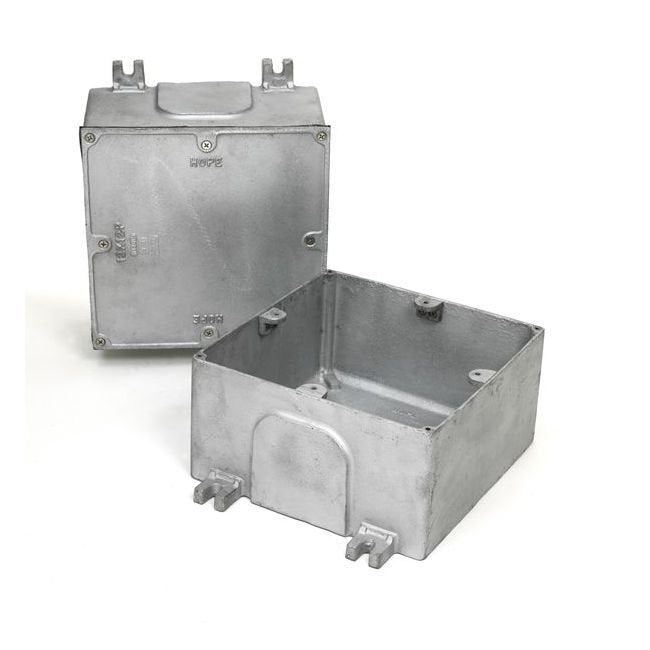

The Hope Electrical H1200 Unflanged Junction and Pull Box is a premium solution designed for surface mounting applications, featuring a durable cast iron construction that meets NEMA 4 and NEMA 3R standards. With a stainless steel hardware and neoprene gasket, this box ensures a secure and weather-resistant enclosure. Additional customization options include drilling, tapping, special gaskets, mounting lugs, and more. Designed for efficiency and reliability, this box is suitable for various institutional and government procurement needs.
Product Specifications
Note 0
Compare wall thickness of box with chart below to determine if wall thickness is great enough for conduit hole threads required. If more threads required, order with Bossed, Drilled or Tapped holes. Conduit Size No. of Threads per inch Wall Thickness Required (NEMA VII) (NEMA IV) 5 Threads 3 1/2 Threads 1/2" - 3/4" 14 3/8" 1/4" 1" - 2" 11.5 7/16" 5/16" 2 1/2" - 4" 8 5/8" 7/16"
Specifications Approx Wall Thickness
7/16 in.
Specifications Approx Weight
180 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped

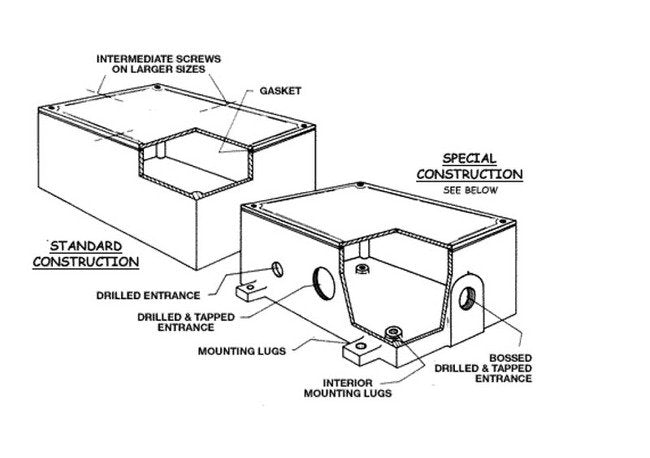

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
18 in.
Specifications Inside Length
18 in.
Specifications Inside Width
12 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H1200
