Hope Electrical H3200 Type Weatherproof Box

Name: Hope Electrical H3200 Type Weatherproof Box
Brand: Hope Electrical Products Co., Inc.
SKU: H32-5bebc3
Price: 259.99 USD
Availability: OutOfStock

SKU:H32-5bebc3

Rugged H3200 Type Weatherproof Box, cast aluminum construction, weather-tight closure, ideal for outdoor applications.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

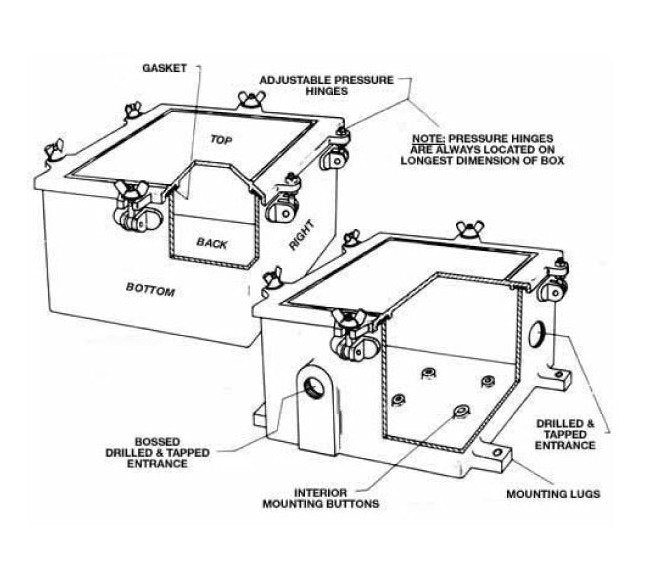

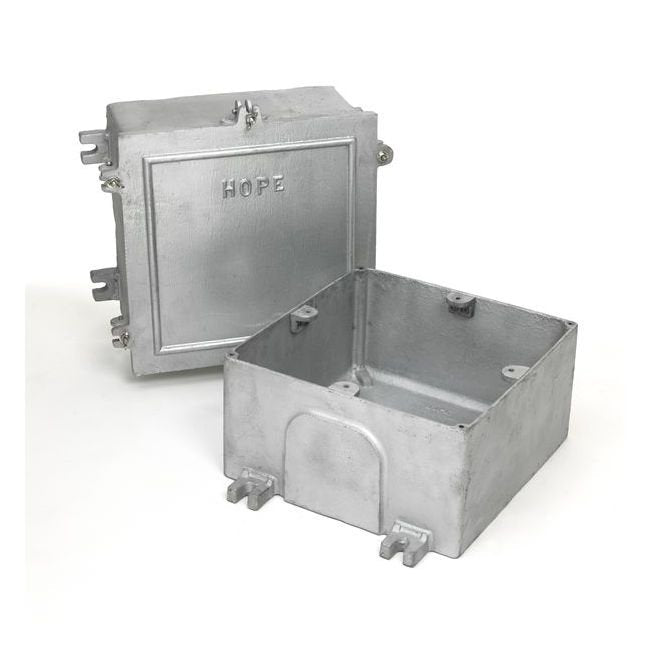

The Hope Electrical H3200 Type Weatherproof Box is a rugged solution designed for durability and weather resistance. Constructed with cast aluminum, this surface-mount box features a retained one piece gasket, stainless steel machine screws, and a neoprene gasket for a secure and weather-tight closure. With a max conduit size of 2 inches, it is ideal for outdoor applications, providing protection for junctions, transformers, relays, and more. Additionally, this box can be customized with drilled and tapped holes and special gaskets as needed.

Product Specifications

Specifications Approx Wall Thickness

5/16 in.

Specifications Approx Weight

148.28 lbs

Specifications Construction

Cast Aluminum

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

8 in.

Specifications Inside Length

48 in.

Specifications Inside Width

24 in.

Specifications Max Conduit

2 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Third Party Certification

UL E189027

Specifications Type

H3200

Hope Electrical H3200 Type Weatherproof Box
