Hope H1200 Unflanged Junction & Pull Box
Hope H1200 Unflanged Junction & Pull Box
SKU:H12-0511b9
High-quality cast iron junction box with U/L Std. 50 compliance, neoprene gasket, and customizable features for secure electrical installations
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Hope H1200 Unflanged Junction & Pull Box
$89.99
Quantity: 1
Claim Your Seller Account
Hope H1200 Unflanged Junction & Pull Box
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

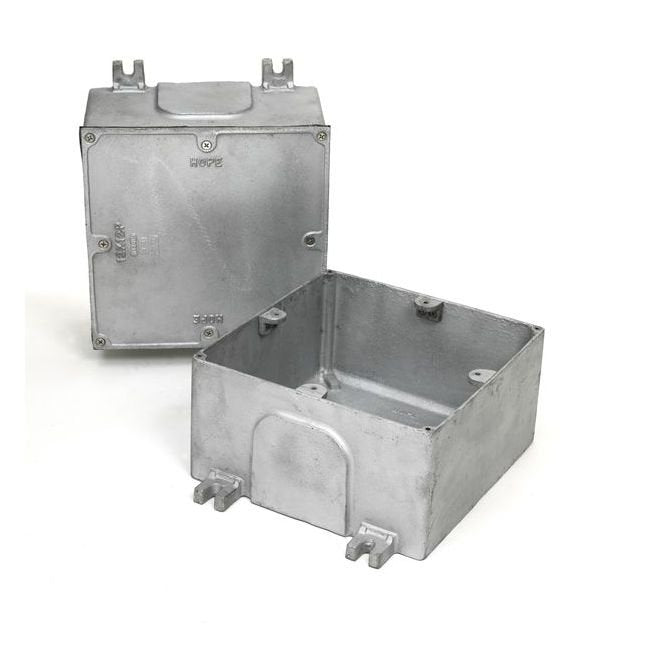

The Hope H1200 Unflanged Junction and Pull Box is a top-quality surface-mounted enclosure designed for robust performance in demanding environments. Constructed from durable cast iron with a hot-dipped galvanized finish, this box complies with U/L Std. 50 for unparalleled safety and reliability. Its robust design includes a neoprene gasket and stainless steel machine screws to ensure a secure seal. Customizable features like drilling, tapping, mounting lugs, and special gaskets cater to diverse application needs. With a spacious interior measuring 10" x 5" x 4" and a sturdy 1/4" wall thickness, this box is ideal for various electrical housing requirements.
Product Specifications
Note 0
Compare wall thickness of box with chart below to determine if wall thickness is great enough for conduit hole threads required. If more threads required, order with Bossed, Drilled or Tapped holes. Conduit Size No. of Threads per inch Wall Thickness Required (NEMA VII) (NEMA IV) 5 Threads 3 1/2 Threads 1/2" - 3/4" 14 3/8" 1/4" 1" - 2" 11.5 7/16" 5/16" 2 1/2" - 4" 8 5/8" 7/16"
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
15.0 lbs
Specifications Construction
cast iron

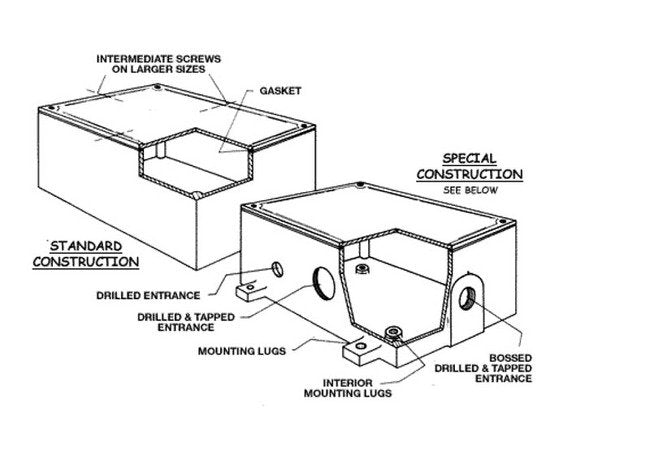

Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
4 in.
Specifications Inside Length
10 in.
Specifications Inside Width
5 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H1200
