The Hope H1200 Unflanged Junction & Pull Box is a sturdy solution crafted from durable cast aluminum, meeting NEMA 4 and NEMA 3R standards. Featuring a neoprene gasket and stainless steel machine screws, this box ensures a secure fit for various applications. Customize with optional extras like drilling, tapping, and special gaskets to suit specific needs. With a spacious interior of 15" x 8" x 8" and a robust wall thickness of 1/4", this box offers reliability and versatility for your electrical projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Compare wall thickness of box with chart below to determine if wall thickness is great enough for conduit hole threads required. If more threads required, order with Bossed, Drilled or Tapped holes. Conduit Size No. of Threads per inch Wall Thickness Required (NEMA VII) (NEMA IV) 5 Threads 3 1/2 Threads 1/2" - 3/4" 14 3/8" 1/4" 1" - 2" 11.5 7/16" 5/16" 2 1/2" - 4" 8 5/8" 7/16"
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
16.55 lbs
Specifications Construction
Cast Aluminum

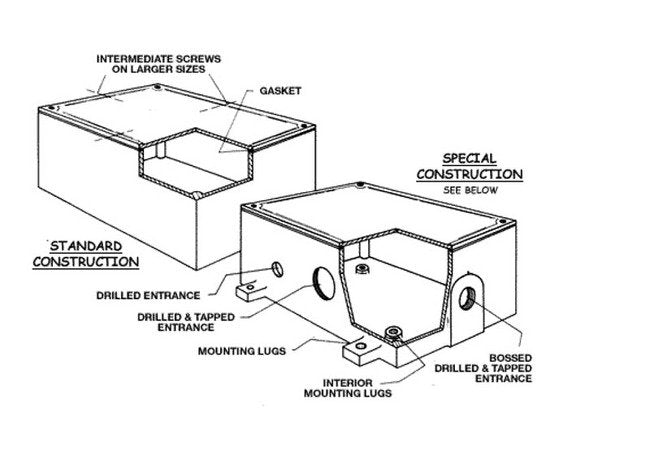

Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
8 in.
Specifications Inside Length
15 in.
Specifications Inside Width
8 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H1200
