Hope H400 Type - Square Outlet Boxes
Hope H400 Type - Square Outlet Boxes
SKU:H40-f29262
Durable and corrosion-resistant cast iron Hope H400 Type Outlet Boxes for secure surface mounting. NEMA 3R/IV rated with stainless steel screws and additional accessories.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hope H400 Type - Square Outlet Boxes
$45.99
Quantity: 1
Claim Your Seller Account
Hope H400 Type - Square Outlet Boxes
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

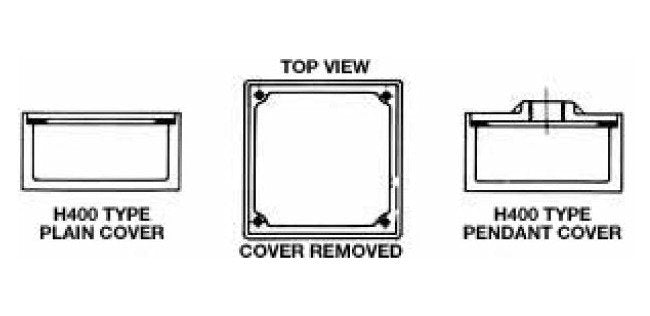

The Hope H400 Type Square Outlet Boxes are constructed with durable cast iron and a hot-dip galvanized surface, providing superior corrosion resistance. Designed for surface mounting, these NEMA 3R and NEMA IV rated boxes come complete with a box, plain cover, gasket, and stainless steel screws. Each unit includes mounting lugs and additional accessories such as P70 and P80 pendant covers. With a maximum conduit size of 3/4 inches and weighing approximately 3.5 lbs, these outlet boxes are versatile and reliable for various electrical installations. Custom drilling and tapping services are available at an additional cost, ensuring precise installations as per your requirements.
Product Specifications
Specifications Approx Weight
3.5 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
2 in.
Specifications Max Conduit
3/4 in.
Specifications Mounting
Surface
Specifications Outside Depth
4 1/8 in.
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H400
