Hope H6200 Type Internal Recess Flanged Box
Hope H6200 Type Internal Recess Flanged Box
SKU:H62-e91b58
Versatile Hope H6200 Type Flanged Box - Flush/Surface mount, NEMA 4/3R, UL Std. 50, Cast Aluminum, 8x8x6 in.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hope H6200 Type Internal Recess Flanged Box
$129.99
Quantity: 1
Claim Your Seller Account
Hope H6200 Type Internal Recess Flanged Box
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

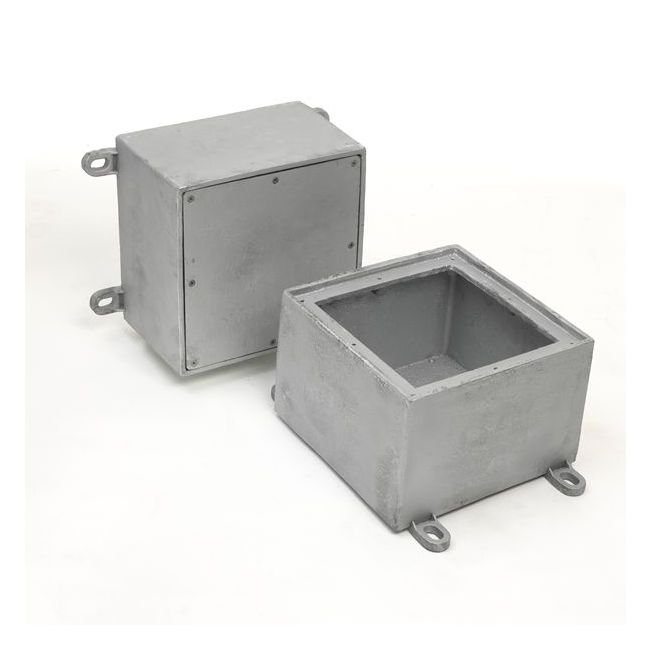

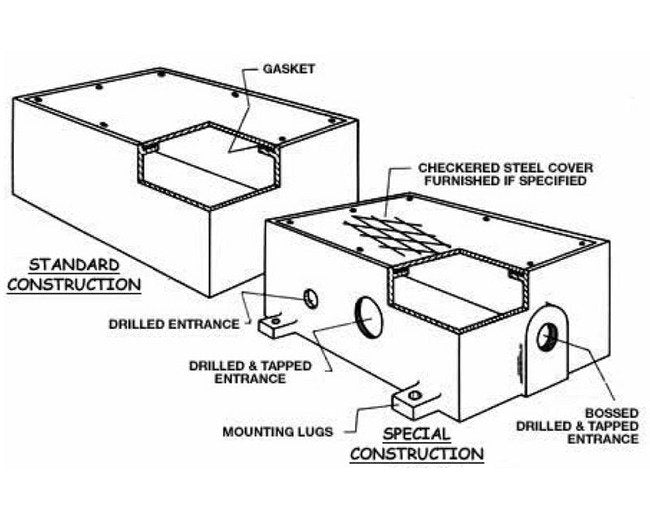

The Hope H6200 Type Internal Recess Flanged Box is a versatile solution designed for flush or surface mounting in concrete, meeting NEMA 4 and NEMA 3R standards, and UL Std. 50. Constructed from durable cast aluminum, it features an 8x8x6 inch size with a 1/4 inch wall thickness, weighing 8.97 lbs. The box includes stainless steel machine screws, neoprene gasket, and optional extras like galvanized checkered steel covers. Customization options include drilled and tapped holes, special gaskets, mounting lugs, hinges, hasp, and cylinder lock.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
8.97 lbs
Specifications Construction
Cast Aluminum
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
6 in.
Specifications Inside Length
8 in.
Specifications Inside Width
8 in.
Specifications Mounting
Flush | Surface
Specifications Options
Galvanized checkered steel covers
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H6200
