Hope H6200 Type Internal Recess Flanged Box
Hope H6200 Type Internal Recess Flanged Box
SKU:H62-7857d1
Durable cast aluminum flanged box with versatile mounting options, NEMA 4 & NEMA 3R compliant, optional extras available.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Hope H6200 Type Internal Recess Flanged Box
$69.99
Quantity: 1
Claim Your Seller Account
Hope H6200 Type Internal Recess Flanged Box
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

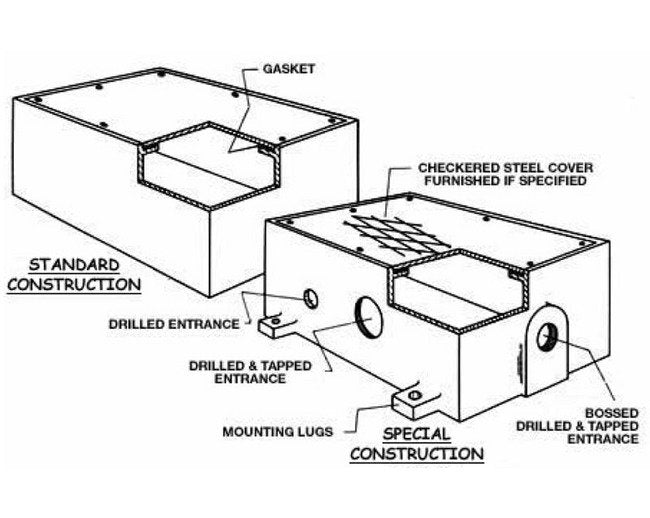

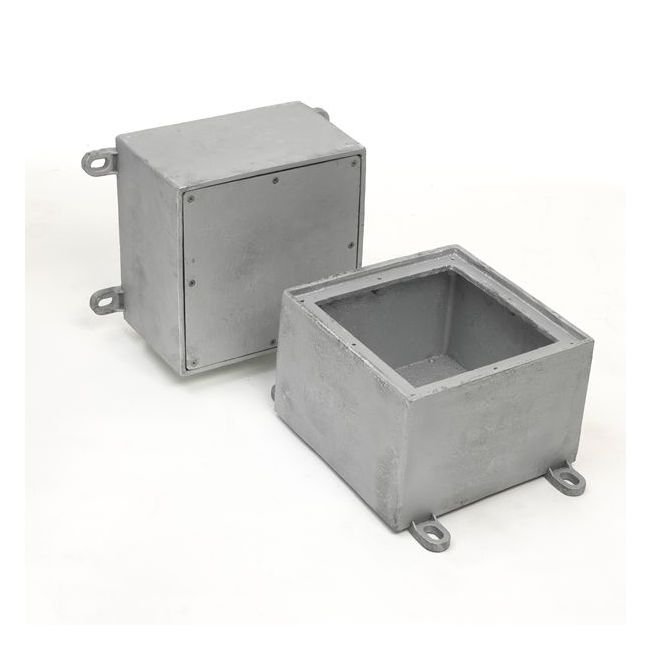

The Hope H6200 Type Internal Recess Flanged Box offers versatile mounting options, suitable for flush mounting in concrete or surface mounting, meeting NEMA 4 and NEMA 3R standards. Constructed with durable cast aluminum, it features stainless steel machine screws, a neoprene gasket, and optional extras like bosses for threaded holes and specialized gaskets. With precise dimensions of 6" x 4" x 3" and a robust wall thickness of 1/4", this box guarantees secure installations. Explore the range of covers including galvanized checkered steel for added protection and customization options.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
3.45 lbs
Specifications Construction
Cast Aluminum
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
3 in.
Specifications Inside Length
6 in.
Specifications Inside Width
4 in.
Specifications Mounting
Flush | Surface
Specifications Options
Galvanized checkered steel covers
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H6200
