Horizontal Laminar Flow Cabinets - Polypropylene
Horizontal Laminar Flow Cabinets - Polypropylene
SKU:HOR-bde97b
Highly durable Horizontal Laminar Flow Cabinets with optional upgrades for superior air filtration. Ideal for clean environments.
Regular price
$4,000.00
Regular price
Sale price
$4,000.00
Unit price
per
Initiate Order
Horizontal Laminar Flow Cabinets - Polypropylene
$4,000.00
Quantity: 1
Claim Your Seller Account
Horizontal Laminar Flow Cabinets - Polypropylene
$4,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

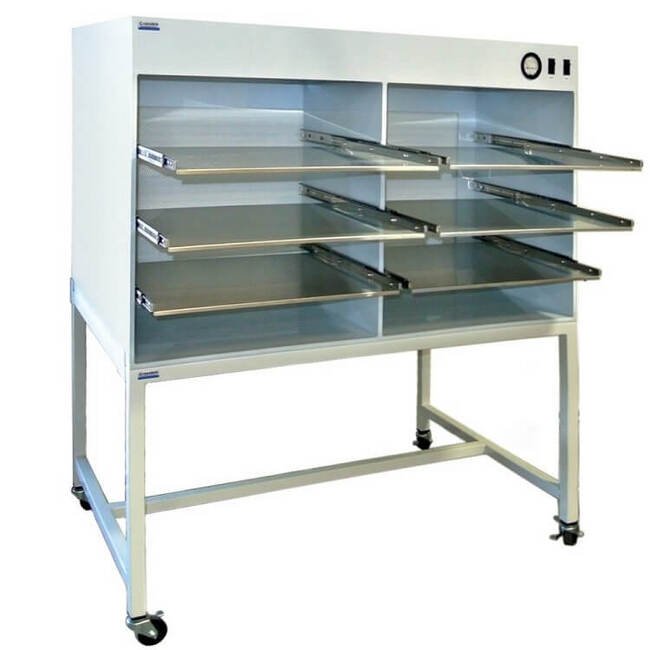

The Horizontal Laminar Flow Cabinets are expertly crafted from 1/4" thick white Polypropylene, known for its exceptional resistance to corrosive substances. Featuring stainless steel shelving and a bottom surface, this cabinet ensures durability and reliability. With dimensions of 52" W x 36" D x 62.25" H, ample working space of 46" x 22" x 26.75", and an air flow direction of horizontal, this cabinet meets the stringent requirements of clean environments. Choose from optional features like a clear PVC front door, a powder-coated steel stand with casters, and the ability to upgrade to ultra-low particulate air (ULPA) filters for enhanced efficiency.
Product Specifications
Additional Information Additional Information
The certified fan filter module with low sound and energy consumption. At 90 FPM, 30" from the filter face, the sound level is measured at 51 dBA. At its highest speed, the moduleâs energy consumption is 340 watts.High-efficiency particulate air (HEPA) filters are 99.99% efficient at removing 0.3µm or larger particles. Filters can be upgraded to ultra-low particulate air (ULPA) filters that are 99.999% efficient at removing 0.12µm or larger particles.The module includes a polyurethane foam pre-filter.Minihelic Gauge (0-1ââ Water Column). The gauge monitors pressure differential and when it exceeds the limit, the filter needs to be replaced.Includes built-in T5 White LED Light
Options Options
Front Door , Clear PVC Opens to the sides.Powder coated steel standFilter upgrade to ultra-low particulate air (ULPA) filters that are 99.999% efficient at removing 0.12µm or larger particles.
Specifications Air Flow Direction
Horizontal
Specifications Air Flow High Speed
580 ft³/min
Specifications Average Air Velocity
90 ft/min
Specifications Hood Width
4 ft
Specifications Material
Polypropylene
Specifications Overall Depth
36 in
Specifications Overall Height
62.25 in
Specifications Overall Width
52 in
Specifications Shelf Area Depth
22 in
Specifications Shelf Area Width
22 in
Specifications Style
Cabinet with Stand
Specifications Work Surface Space
46 x 22 x 26.75 in
