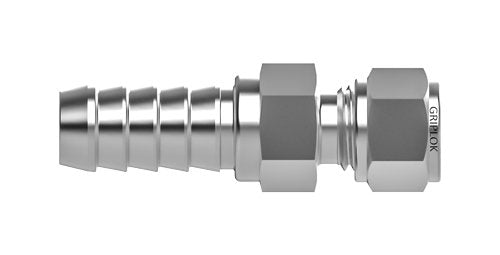

Hose Barb Connector - Griplok 316 SS, 1/4 Tube x 1/8 Hose Barb
Hose Barb Connector - Griplok 316 SS, 1/4 Tube x 1/8 Hose Barb
SKU:SSP-1f0413
Enhance your fluid systems with Griplok Hose Barb Connector - 316 SS, 1/4 Tube x 1/8 Hose Barb. Superior performance guaranteed.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Hose Barb Connector - Griplok 316 SS, 1/4 Tube x 1/8 Hose Barb
$24.99
Quantity: 1
Claim Your Seller Account
Hose Barb Connector - Griplok 316 SS, 1/4 Tube x 1/8 Hose Barb
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the Griplok Hose Barb Connector, designed for precision and durability. This connector features a 316 SS construction, ensuring corrosion resistance and high-performance in demanding environments. With a 1/4-inch tube fitting and 1/8-inch hose barb, it offers a secure and tight connection. Operating smoothly at temperatures ranging from -15 to 350 °F, this straight connector guarantees reliable function and longevity. Trust the Griplok series for top-quality instrumentation tube fittings.

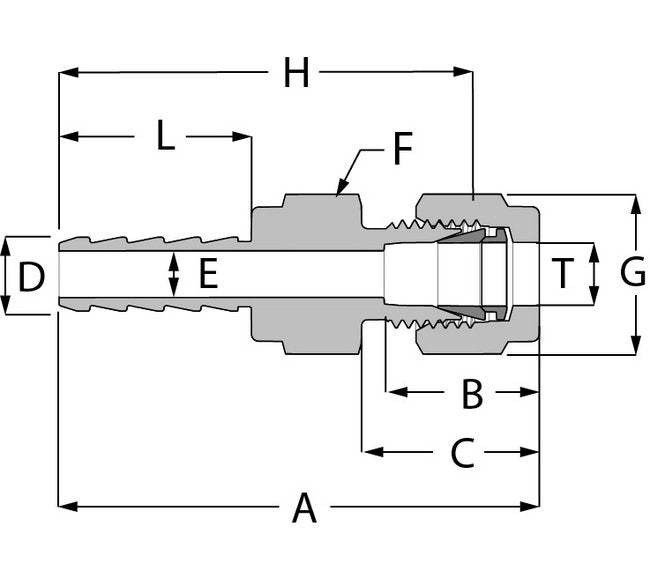

Product Specifications
Dimensions A
1.85 in
Dimensions B
0.64 in
Dimensions C
0.74 in
Dimensions D
0.30 in
Dimensions E
0.09 in
Dimensions F Hex Flat
7/16 in
Dimensions G
9/16 in
Dimensions H
1.56 in
Dimensions L
0.79 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/4 in
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
