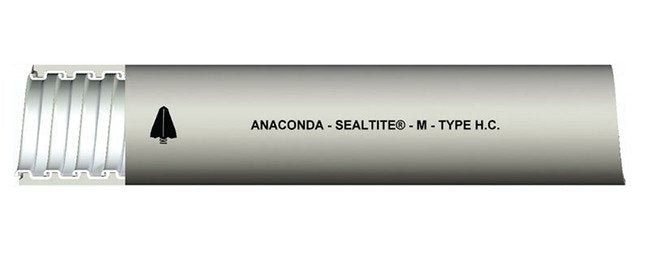

Hot & Cold Resistant Liquid-Tight Flexible Metal Conduit HC - 1/2-in x 100-ft
Hot & Cold Resistant Liquid-Tight Flexible Metal Conduit HC - 1/2-in x 100-ft
SKU:LIQ-ffec99
Type HC Liquid-Tight Flexible Metal Conduit - Ideal for high and low-temperature environments, providing superior wiring protection.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Hot & Cold Resistant Liquid-Tight Flexible Metal Conduit HC - 1/2-in x 100-ft
$139.99
Quantity: 1
Claim Your Seller Account
Hot & Cold Resistant Liquid-Tight Flexible Metal Conduit HC - 1/2-in x 100-ft
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

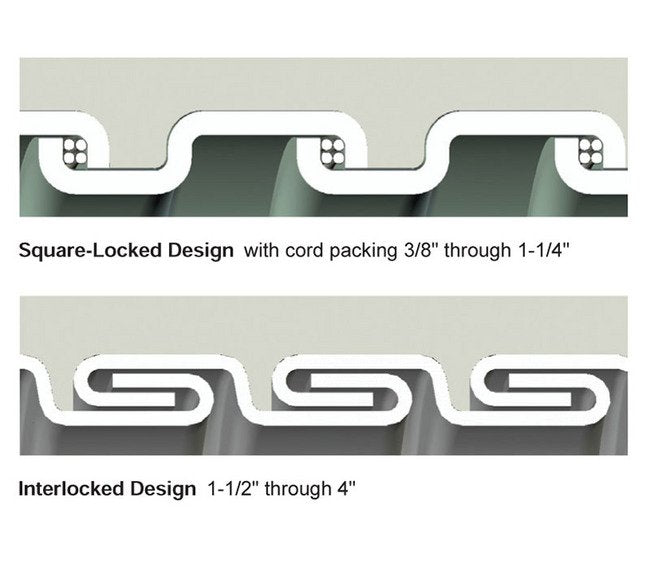

The Type HC Liquid-Tight Flexible Metal Conduit is a durable solution designed for high and low-temperature environments, ranging from -51ºF to +221ºF. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit provides a flexible and liquid-tight raceway for wiring. It is ideal for applications not requiring agency approvals and is IP 67 rated when used with approved end connectors. With a smooth appearance and RoHS WEEE certification, this conduit offers superior protection in diverse conditions.
Product Specifications
Application 0
High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.5 in | 63.5 mm
Specifications Approx Weight Per 100 Ft
25 lbs | 11.34 kg
Specifications Color
GRAY
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
31101 | AT-11 | HLT-1/2
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.620 to 0.640 in | 15.748 to 16.256 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order.Other colors available upon request.
Specifications Optional Colors
Black
Specifications Outside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Packaging
Small Cartons
Specifications Type
HC
