Hot Dip Galvanized Bolt Type Shackles

Hot Dip Galvanized Bolt Type Shackles

SKU:WIR-a531c6

Premium Hot Dip Galvanized Bolt Type Shackles for heavy-duty lifting and towing needs.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Hot Dip Galvanized Bolt Type Shackles

Hot Dip Galvanized Bolt Type Shackles

$29.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Bolt Type Shackles

Hot Dip Galvanized Bolt Type Shackles

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Bolt Type Shackles are engineered to meet the highest standards of strength and durability. These shackles conform to Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3, ensuring reliable performance in demanding environments. With a quenched and tempered alloy pin, these shackles boast a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit. Ideal for wire rope loops used in lifting or towing applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

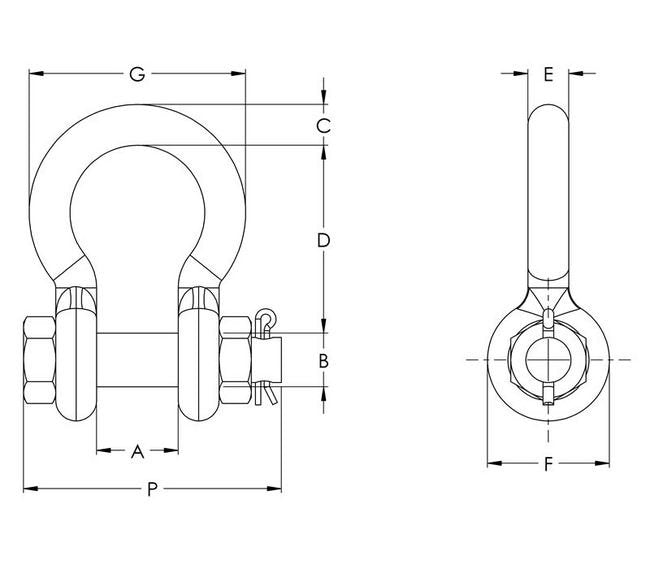

Product Specifications

Specifications A In
.53
Specifications B In
.38
Specifications Cross Reference
SAS516
Specifications C In
.31
Specifications D In
1.22
Specifications E In
.31
Specifications F In
.75
Specifications G In
1.47
Specifications Nominal Size In
5/16
Specifications P In
1.82
Specifications Weight Lbs
.22
Specifications Wll Tons
3/4
CAGE
0T9L4
NAICS
332722
PSC
5306
