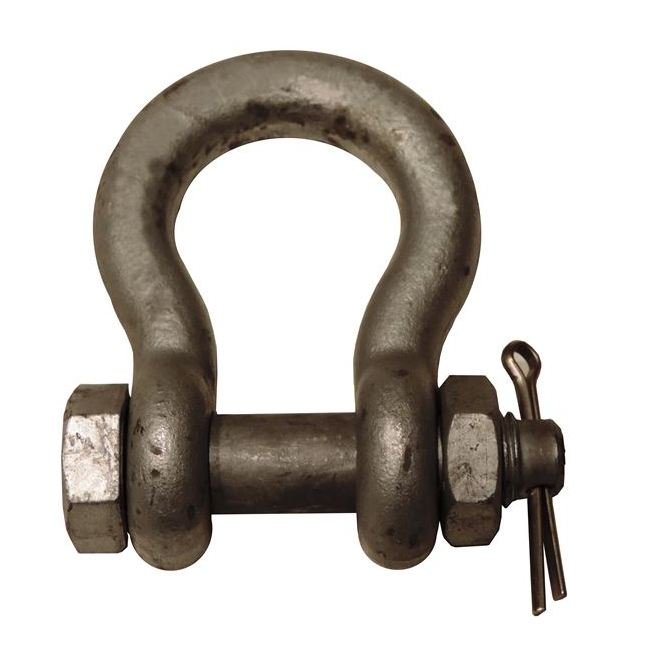

Hot Dip Galvanized Bolt Type Shackles - 1 1/2 inch, 17 Ton WLL

Hot Dip Galvanized Bolt Type Shackles - 1 1/2 inch, 17 Ton WLL

SKU:WIR-fa20d2

High-quality Hot Dip Galvanized Bolt Type Shackles for reliable lifting and towing applications.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Hot Dip Galvanized Bolt Type Shackles - 1 1/2 inch, 17 Ton WLL

Hot Dip Galvanized Bolt Type Shackles - 1 1/2 inch, 17 Ton WLL

$79.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Bolt Type Shackles - 1 1/2 inch, 17 Ton WLL

Hot Dip Galvanized Bolt Type Shackles - 1 1/2 inch, 17 Ton WLL

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Bolt Type Shackles are designed to meet the stringent requirements of Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3. These shackles are quenched and tempered with an alloy pin, ensuring superior strength and durability. With a 2.2 times working load limit for proof load and a 6 times working load limit for ultimate load, these shackles offer exceptional safety and reliability. Ideal for use on wire rope loops for lifting or towing applications.

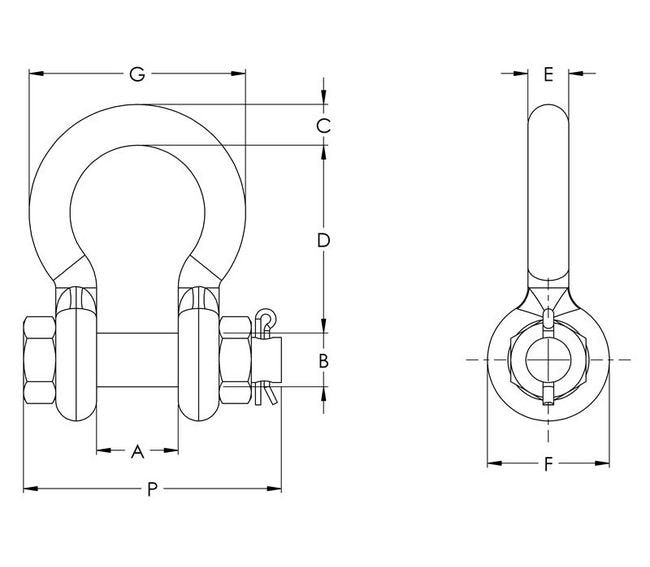

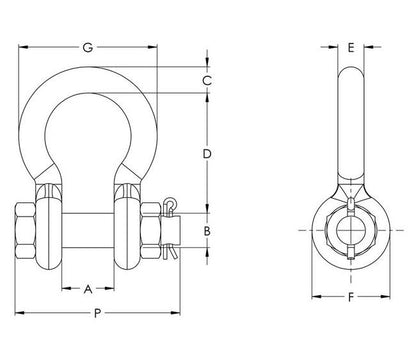

Product Specifications

Specifications A In
2.38
Specifications B In
1.63
Specifications Cross Reference
SAS112
Specifications C In
1.62
Specifications D In
5.75
Specifications E In
1.5
Specifications F In
3.63
Specifications G In
6.88
Specifications Nominal Size In
1 1/2
Specifications P In
7.73
Specifications Weight Lbs
19
Specifications Wll Tons
17
CAGE
0T9L4
NAICS
332722
PSC
5306
