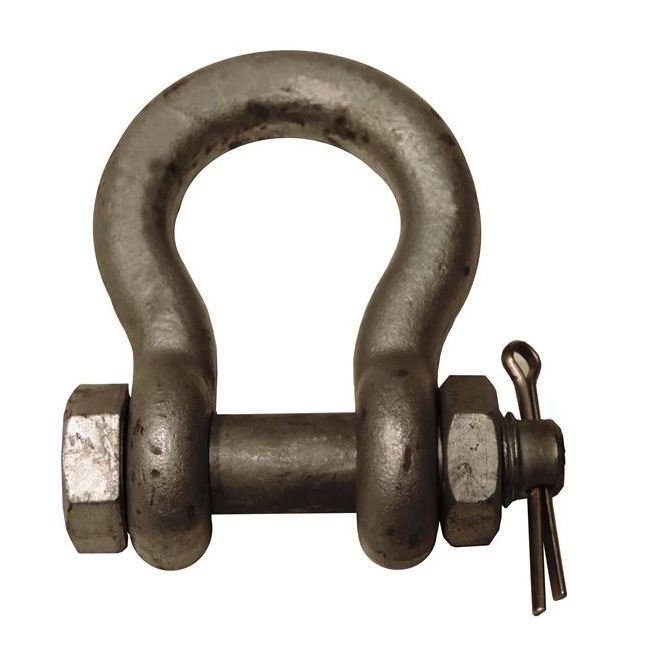

Hot Dip Galvanized Bolt Type Shackles - 1/2 inch

Hot Dip Galvanized Bolt Type Shackles - 1/2 inch

SKU:WIR-d52897

Heavy-duty Hot Dip Galvanized Bolt Type Shackles for lifting and towing applications. Conforms to Federal Specification RR-C-271D Type IVA or IVB.

Regular price $35.99
Regular price Sale price $35.99
Sale

Initiate Order

Hot Dip Galvanized Bolt Type Shackles - 1/2 inch

Hot Dip Galvanized Bolt Type Shackles - 1/2 inch

$35.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Bolt Type Shackles - 1/2 inch

Hot Dip Galvanized Bolt Type Shackles - 1/2 inch

$35.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Bolt Type Shackles are designed for heavy-duty lifting and towing applications, meeting Federal Specification RR-C-271D Type IVA or IVB. With a working load limit of 2 tons and a quenched, tempered alloy pin, these shackles offer exceptional strength and durability. Proof load is 2.2 times the working load limit, while the ultimate load is 6 times the working load limit. Ideal for wire rope loops, these shackles are essential for secure and reliable operations.

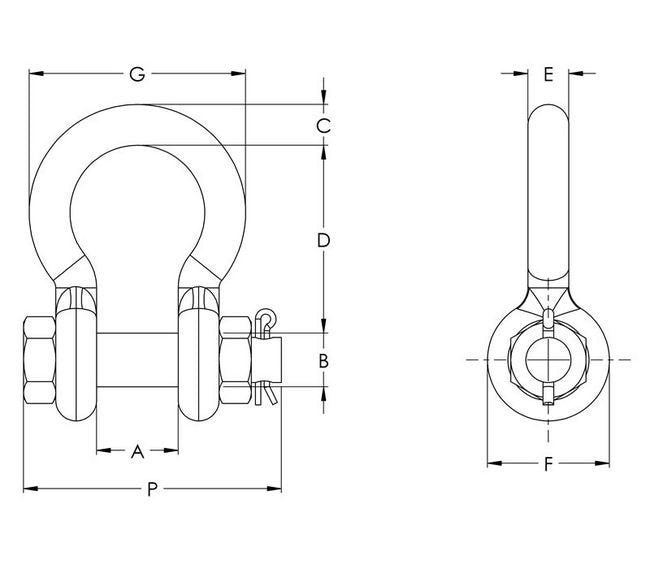

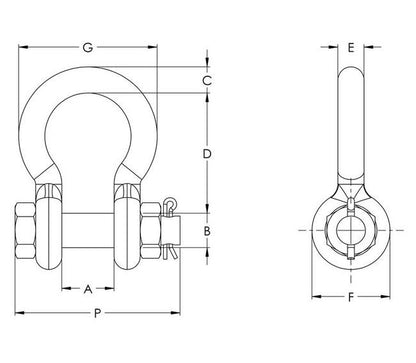

Product Specifications

Specifications A In
0.81
Specifications B In
0.63
Specifications Cross Reference
SAS12
Specifications C In
0.5
Specifications D In
1.88
Specifications E In
0.5
Specifications F In
1.19
Specifications G In
2.31
Specifications Nominal Size In
1/2
Specifications P In
2.8
Specifications Weight Lbs
.79
Specifications Wll Tons
2
CAGE
0T9L4
NAICS
332722
PSC
5306
