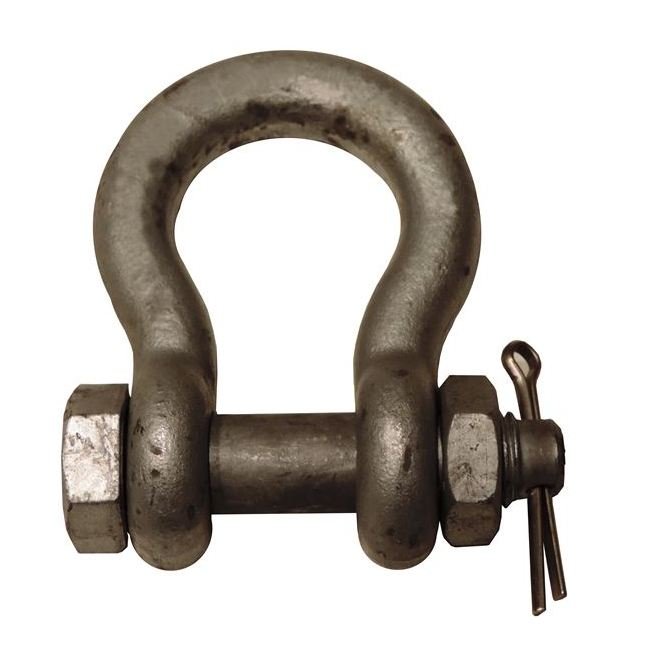

Hot Dip Galvanized Bolt Type Shackles (7/16 inch)

Hot Dip Galvanized Bolt Type Shackles (7/16 inch)

SKU:WIR-5ea801

Durable Hot Dip Galvanized Bolt Type Shackles for lifting and towing applications, compliant with Federal Specification RR-C-271D.

Regular price $22.99
Regular price Sale price $22.99
Sale

Initiate Order

Hot Dip Galvanized Bolt Type Shackles (7/16 inch)

Hot Dip Galvanized Bolt Type Shackles (7/16 inch)

$22.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Bolt Type Shackles (7/16 inch)

Hot Dip Galvanized Bolt Type Shackles (7/16 inch)

$22.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Bolt Type Shackles are designed to meet the rigorous demands of lifting and towing applications. Compliant with Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3, these shackles feature a quenched and tempered design with an alloy pin for enhanced strength and durability. With a 1 1/2 tons Working Load Limit (WLL) and a 6 times Ultimate Load, these shackles provide reliable performance. Ideal for wire rope loops, these shackles are a dependable choice for both consumer and institutional buyers.

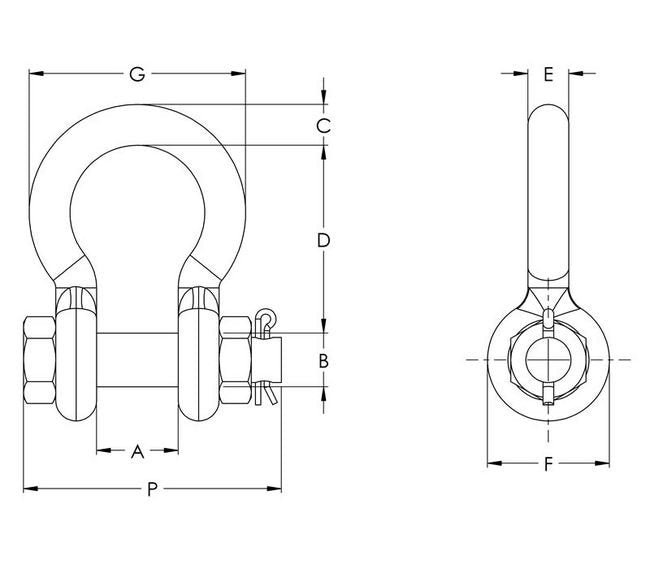

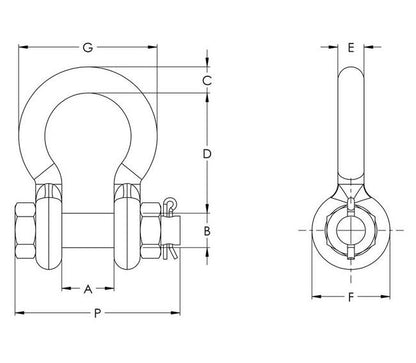

Product Specifications

Specifications A In
.75
Specifications B In
.50
Specifications Cross Reference
SAS716
Specifications C In
.44
Specifications D In
1.69
Specifications E In
.44
Specifications F In
1.06
Specifications G In
2.03
Specifications Nominal Size In
7/16
Specifications P In
2.51
Specifications Weight Lbs
.49
Specifications Wll Tons
1 1/2
CAGE
0T9L4
NAICS
332722
PSC
5306
