Hot Dip Galvanized Bolt Type Shackles - 7/8in, 6.5T WLL

Hot Dip Galvanized Bolt Type Shackles - 7/8in, 6.5T WLL

SKU:WIR-111b4c

Heavy-duty 7/8" Bolt Type Shackles - 6.5T WLL, Hot Dip Galvanized, Federal Spec RR-C-271D, Grade A

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Hot Dip Galvanized Bolt Type Shackles - 7/8in, 6.5T WLL

Hot Dip Galvanized Bolt Type Shackles - 7/8in, 6.5T WLL

$49.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Bolt Type Shackles - 7/8in, 6.5T WLL

Hot Dip Galvanized Bolt Type Shackles - 7/8in, 6.5T WLL

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

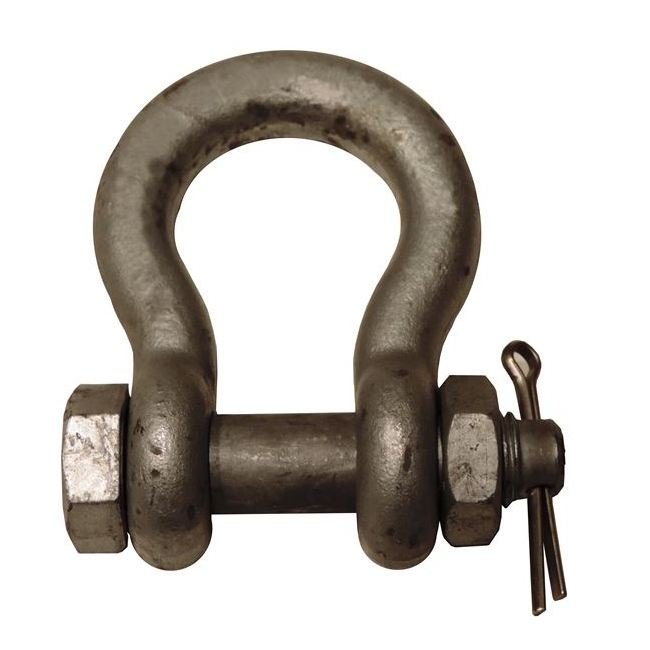

The Bolt Type Shackles Bow Type (Anchor) are designed for heavy-duty lifting or towing applications. Made of drop forged steel, these shackles are hot dip galvanized for maximum corrosion resistance. With a 6.5-ton working load limit and quenched and tempered construction, these shackles meet Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3 standards. The alloy pin adds durability and security, ensuring a reliable connection for your wire rope loops. Trust these shackles for tough industrial and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

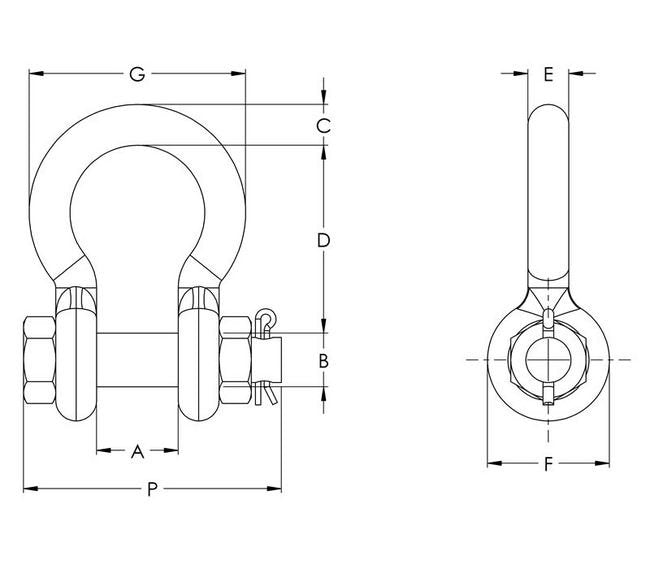

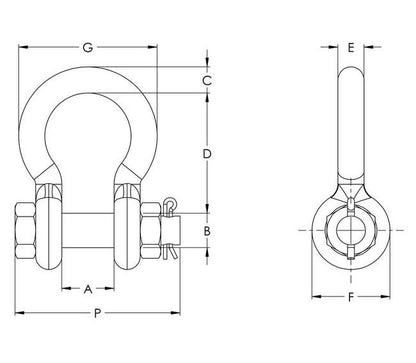

Product Specifications

Specifications A In
1.44
Specifications B In
1
Specifications Cross Reference
SAS78
Specifications C In
0.97
Specifications D In
3.31
Specifications E In
0.88
Specifications F In
2.09
Specifications G In
4.03
Specifications Nominal Size In
7/8
Specifications P In
4.71
Specifications Weight Lbs
3.95
Specifications Wll Tons
6 1/2
CAGE
0T9L4
NAICS
332722
PSC
5306
