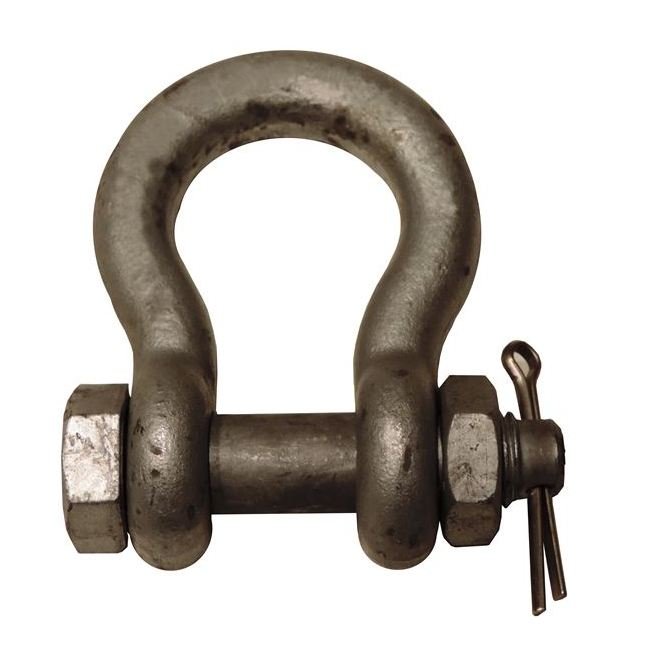

Hot Dip Galvanized Drop Forged Bolt Type Shackles - 1 3/8 inch, 13.5 Ton WLL

Hot Dip Galvanized Drop Forged Bolt Type Shackles - 1 3/8 inch, 13.5 Ton WLL

SKU:WIR-984fff

Premium Hot Dip Galvanized Drop Forged Bolt Type Shackles for heavy-duty lifting & towing applications

Regular price $99.99
Regular price Sale price $99.99
Sale

Initiate Order

Hot Dip Galvanized Drop Forged Bolt Type Shackles - 1 3/8 inch, 13.5 Ton WLL

Hot Dip Galvanized Drop Forged Bolt Type Shackles - 1 3/8 inch, 13.5 Ton WLL

$99.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Drop Forged Bolt Type Shackles - 1 3/8 inch, 13.5 Ton WLL

Hot Dip Galvanized Drop Forged Bolt Type Shackles - 1 3/8 inch, 13.5 Ton WLL

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Bolt Type Shackles are meticulously crafted to meet the rigorous Federal Specification RR-C-271D Type IVA or Type IVB, Grade A, Class 3 standards. These shackles feature quenched and tempered construction with an alloy pin, ensuring exceptional strength and durability. With a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, these shackles guarantee unmatched safety and reliability. Ideal for wire rope loops used in lifting or towing applications, these shackles are a must-have for industrial and institutional settings.

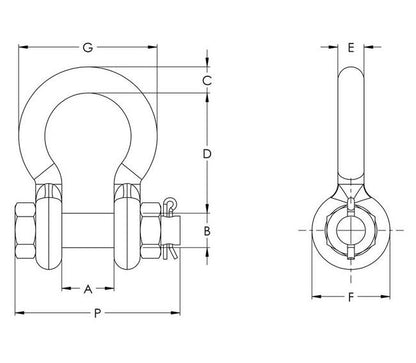

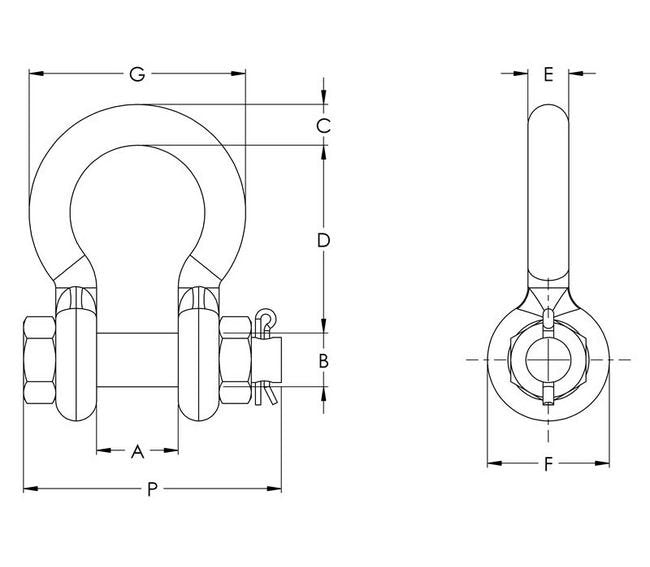

Product Specifications

Specifications A In
2.25
Specifications B In
1.5
Specifications Cross Reference
SAS138
Specifications C In
1.5
Specifications D In
5.25
Specifications E In
1.38
Specifications F In
3.31
Specifications G In
6.38
Specifications Nominal Size In
1 3/8
Specifications P In
7.21
Specifications Weight Lbs
15.83
Specifications Wll Tons
13 1/2
CAGE
0T9L4
NAICS
332722
PSC
5306
