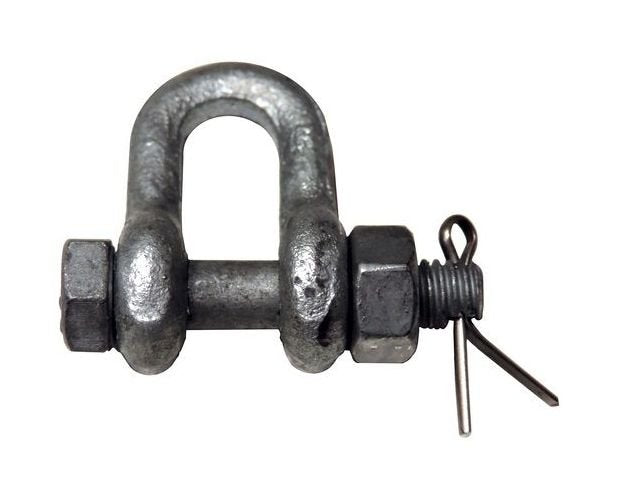

Hot Dip Galvanized Drop Forged Bolt Type Shackles Dee Type

Hot Dip Galvanized Drop Forged Bolt Type Shackles Dee Type

SKU:WIR-48baa8

High-quality Hot Dip Galvanized Bolt Type Shackles Dee Type for secure lifting and towing operations.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Hot Dip Galvanized Drop Forged Bolt Type Shackles Dee Type

Hot Dip Galvanized Drop Forged Bolt Type Shackles Dee Type

$34.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Drop Forged Bolt Type Shackles Dee Type

Hot Dip Galvanized Drop Forged Bolt Type Shackles Dee Type

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Bolt Type Shackles Dee Type are constructed to meet stringent Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3 standards. With a high proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, these shackles provide reliable performance for lifting and towing operations. Their 7/8-inch nominal size, quenched and tempered alloy pin, and robust design ensure durability and safety in heavy-duty applications.

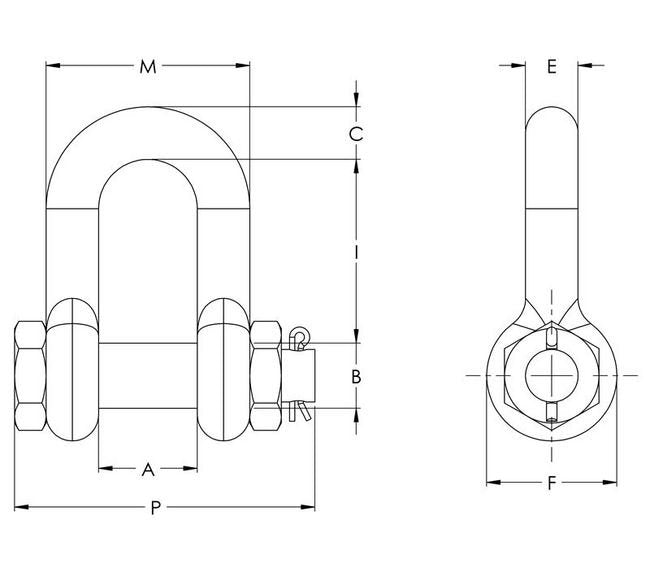

Product Specifications

Specifications A In
1.44
Specifications B In
1
Specifications C In
0.97
Specifications D In
3.31
Specifications E In
0.88
Specifications F In
2.09
Specifications I In
2.81
Specifications M In
3.19
Specifications Nominal Size In
7/8
Specifications P In
4.71
Specifications Weight Lbs
3.85
Specifications Wll Tons
6 1/2
CAGE
0T9L4
NAICS
332722
PSC
5306
