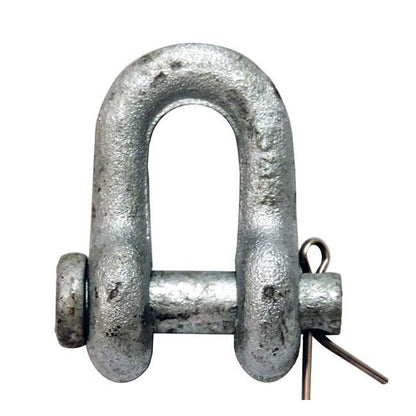

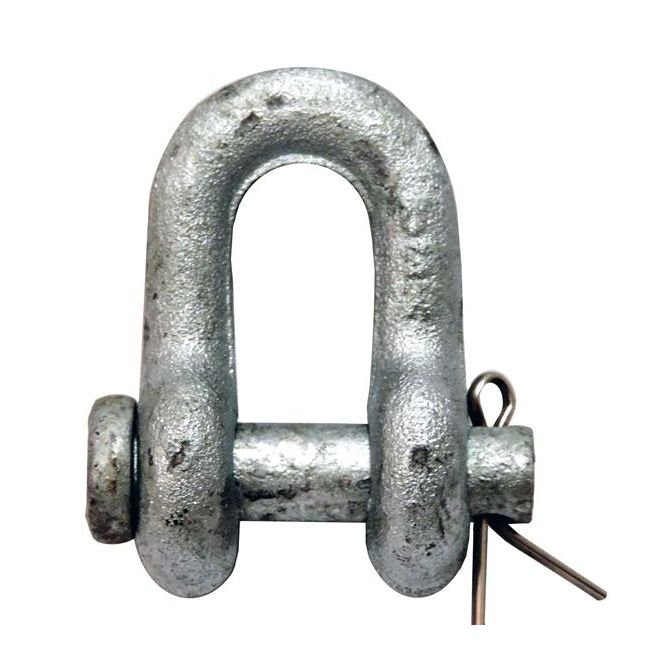

Hot Dip Galvanized Drop Forged Chain Shackles

Hot Dip Galvanized Drop Forged Chain Shackles

SKU:WIR-6f56b0

Premium Hot Dip Galvanized Drop Forged Chain Shackles - Federal Spec. RR-C-271D Compliant, 6x Ultimate Load, Ideal for Lifting & Towing

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Hot Dip Galvanized Drop Forged Chain Shackles

Hot Dip Galvanized Drop Forged Chain Shackles

$39.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Drop Forged Chain Shackles

Hot Dip Galvanized Drop Forged Chain Shackles

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Chain Shackles are engineered to meet the rigorous Federal Specification RR-C-271D, Type IVB, Grade A, Class 1 standards, ensuring exceptional quality and performance. With an impressive ultimate load 6 times the working load limit and a proof load of 2.2 times the working load limit, these shackles provide a reliable and safe lifting solution. The quenched and tempered construction, along with the alloy pin, adds to the durability and longevity of these shackles. Ideal for wire rope loops, towing, and lifting applications, these shackles offer superior strength and reliability.

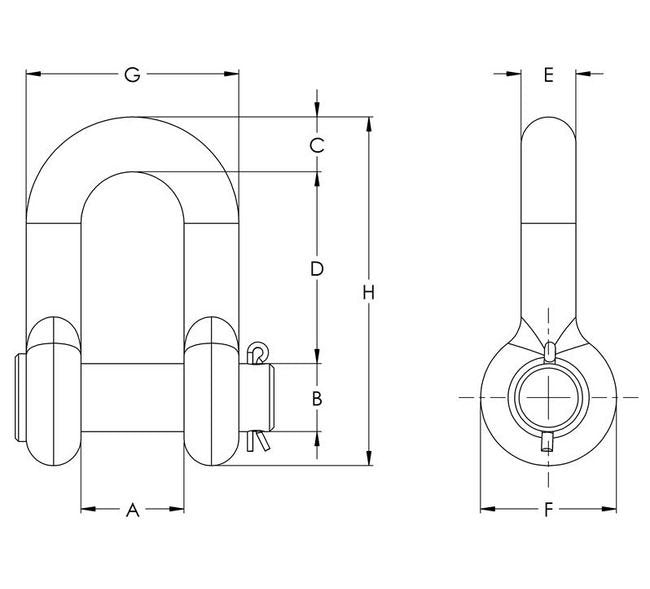

Product Specifications

Specifications A In
1.06
Specifications B In
0.75
Specifications C In
0.62
Specifications D In
2
Specifications E In
0.63
Specifications F In
1.5
Specifications G In
2.31
Specifications H In
3.75
Specifications M In
3.34
Specifications Nominal Size In
5/8
Specifications Weight Lbs
1.21
Specifications Wll Tons
3.25
CAGE
0T9L4
NAICS
332999
PSC
5340
