High-quality Hot Dip Galvanized Turnbuckle Eye & Eye for secure wire rope applications.

$42.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye is a robust and reliable solution for wire rope tensioning and securing applications. This turnbuckle conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 4, ensuring high-quality performance. With hot dip galvanization for corrosion resistance, quenched and tempered end fittings, and normalized bodies, this turnbuckle is built to withstand demanding environments. It has a proof load capacity of 2.5 times the working load limit, with a superior ultimate load rating of 5 times the working load limit. The precise dimensions ensure easy installation and a secure fit.

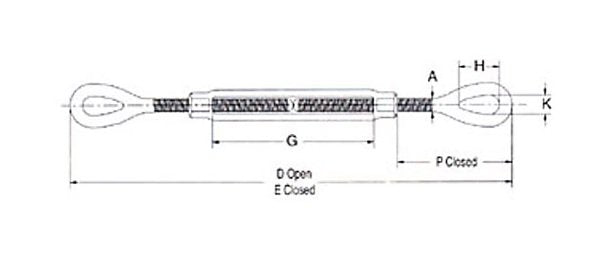

Product Specifications

Specifications A

0.5

Specifications D Open

25.96

Specifications E Closed

16.96

Specifications G

Specifications H

1.44

Specifications K

0.72

Specifications P Closed

3.23

Specifications Thread Dia Take Up In

1/2 x 9

Specifications Weight

1.83

Specifications Wll Lbs

2200
