Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye - 1 x 24 inch, 5000 lbs WLL
Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye - 1 x 24 inch, 5000 lbs WLL
SKU:WIR-ac2dcb
High-quality Hot Dip Galvanized Turnbuckle Hook & Eye meeting FF-T-791b standards for strength & durability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye - 1 x 24 inch, 5000 lbs WLL
$39.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye - 1 x 24 inch, 5000 lbs WLL
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye is a premium wire rope hardware product designed to meet the rigorous requirements of federal specification FF-T-791b, Type 1, Form 1 - Class 6. With hot dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies, this turnbuckle offers superior strength and longevity. It boasts a 2.5 times working load limit proof load and 5 times ultimate load capacity, ensuring reliable performance in demanding applications.
Ready to Grow Without Cash Flow Constraints?

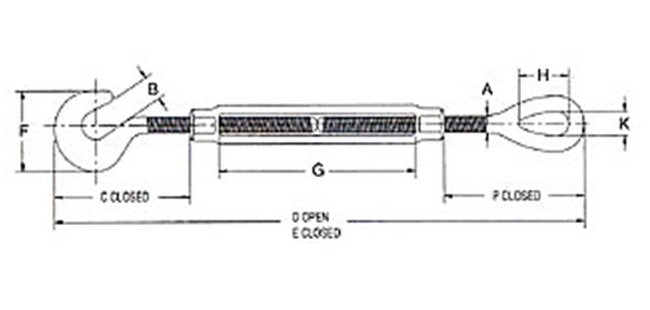

Product Specifications
Specifications A
1
Specifications B
1.25
Specifications C Closed
5.84
Specifications D Open
62.69
Specifications E Closed
38.69
Specifications F
4.25
Specifications G
24
Specifications H
3
Specifications K
1.44
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 24
Specifications Weight
17.25
Specifications Wll Lbs
5000
