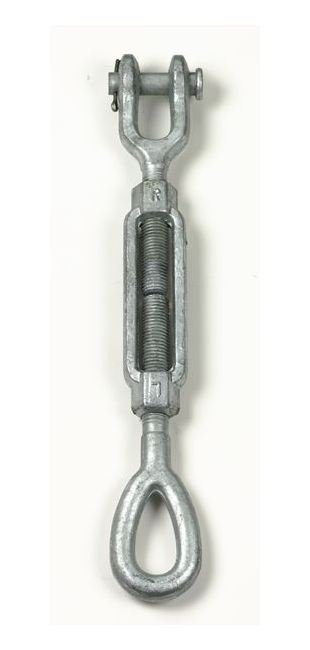

Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye - 1" x 12" - WLL 10,000 lbs

Name: Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye - 1" x 12" - WLL 10,000 lbs
Brand: Lexco Cable Manufacturing
SKU: WIR-d9b8b0
Price: 69.99 USD
Availability: OutOfStock

SKU:WIR-d9b8b0

Heavy-duty Hot Dip Galvanized Turnbuckle Jaw & Eye - Federal Spec FF-T-791b - WLL 10,000 lbs

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior strength and durability with our Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye. This heavy-duty hardware is designed to meet Federal Specification FF-T-791b, Type 1, Form 1 - Class 8, ensuring top-notch quality. With a proof load of 2.5 times the working load limit and ultimate load 5 times the working load limit, this turnbuckle provides reliable performance. The end fittings are quenched and tempered, while the bodies are normalized for added resilience. With precise dimensions and a weight of 11.2 lbs, this turnbuckle is a dependable choice for various applications.

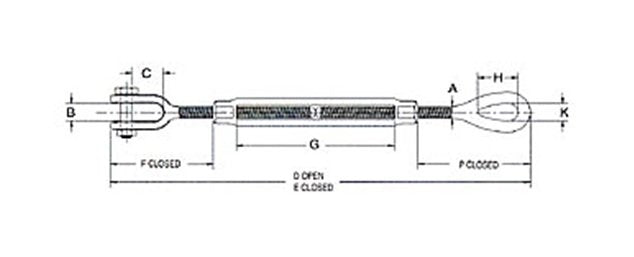

Product Specifications

Specifications A

Specifications B

1.19

Specifications C Closed

2.06

Specifications D Open

38.89

Specifications E Closed

26.89

Specifications F

5.53

Specifications G

Specifications H

Specifications K

1.44

Specifications Pin Diameter In

7/8

Specifications P Closed

6.36

Specifications Thread Dia Take Up In

1 x 12

Specifications Weight

11.2

Specifications Wll Lbs

10,000
