Hot Dip Galvanized Drop Forged Turnbuckle - Jaw & Eye, 15,200 lbs WLL
Hot Dip Galvanized Drop Forged Turnbuckle - Jaw & Eye, 15,200 lbs WLL
SKU:WIR-8331e9
Heavy-duty Hot Dip Galvanized Turnbuckle with 15,200 lbs WLL for reliable performance in industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Hot Dip Galvanized Drop Forged Turnbuckle - Jaw & Eye, 15,200 lbs WLL
$89.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Drop Forged Turnbuckle - Jaw & Eye, 15,200 lbs WLL
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

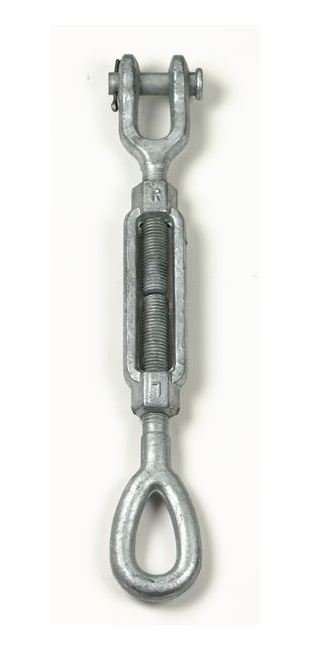

The Hot Dip Galvanized Drop Forged Turnbuckle features a sturdy construction that conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 8. With end fittings that are quenched and tempered, and bodies normalized, this turnbuckle offers exceptional strength and durability. The 2.5 times working load limit proof load and 5 times working load limit ultimate load ensure reliable performance in heavy-duty applications. With precise dimensions and a threaded design, this turnbuckle is ideal for wire rope hardware setups.

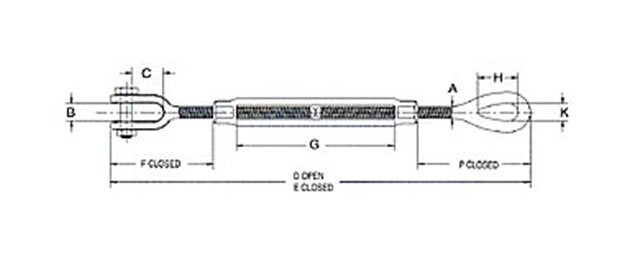

Product Specifications
Specifications A
1.25
Specifications B
1.75
Specifications C Closed
2.81
Specifications D Open
54.05
Specifications E Closed
36.05
Specifications F
7.21
Specifications G
18
Specifications H
3.56
Specifications K
1.81
Specifications Pin Diameter In
1-1/8
Specifications P Closed
7.72
Specifications Thread Dia Take Up In
1-1/4 x 18
Specifications Weight
24.18
Specifications Wll Lbs
15,200
