Hot Dip Galvanized Drop Forged Turnbuckles Body - Federal Spec FF-T-791b Type 1 Class 2
Hot Dip Galvanized Drop Forged Turnbuckles Body - Federal Spec FF-T-791b Type 1 Class 2
SKU:WIR-465778
High-strength Hot Dip Galvanized Turnbuckle Body - Compliant with Federal Spec FF-T-791b Type 1 Class 2
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hot Dip Galvanized Drop Forged Turnbuckles Body - Federal Spec FF-T-791b Type 1 Class 2
$29.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Drop Forged Turnbuckles Body - Federal Spec FF-T-791b Type 1 Class 2
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

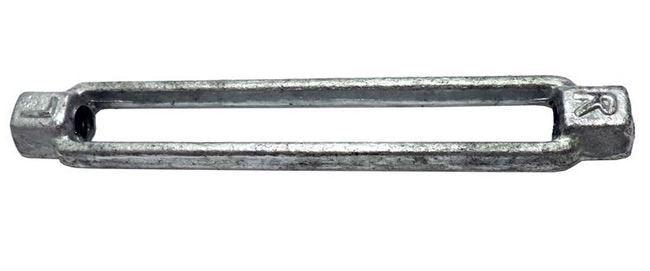

The Hot Dip Galvanized Drop Forged Turnbuckles Body provides superior strength and durability for heavy-duty wire rope installations. Compliant with Federal Specification FF-T-791b Type 1 Form 1 Class 2, this turnbuckle body features normalized dimensions ensuring precise fitment. With a working load limit of 3500 lbs, and a weight of only 0.9 lbs, it offers reliable performance in demanding applications. The threaded construction (5/8 x 6 inches) allows for easy adjustments to ensure secure connections. Ideal for industrial, construction, and marine use, this turnbuckle body is a trusted choice for meeting stringent procurement standards.

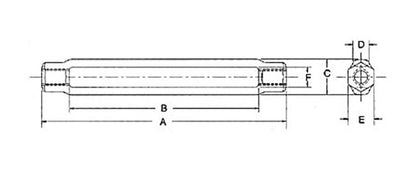

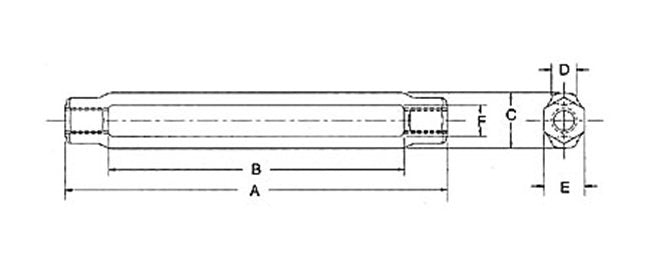

Product Specifications
Specifications A
7.88
Specifications B
6
Specifications C
1.38
Specifications D
0.62
Specifications E
1
Specifications F
0.75
Specifications Thread Dia Take Up In
5/8 x 6
Specifications Weight
0.9
Specifications Wll Lbs
3500
