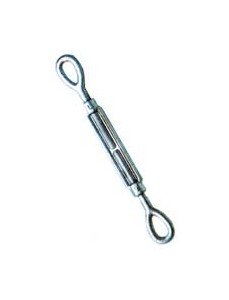

Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 5/16 x 4-1/2

Name: Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 5/16 x 4-1/2
Brand: Lexco Cable Manufacturing
SKU: WIR-7d5fa9
Price: 19.99 USD
Availability: OutOfStock

SKU:WIR-7d5fa9

Highly durable Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye meeting Federal Spec FF-T-791b standards.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye are crafted to meet the strict Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards. These turnbuckles are hot dip galvanized for enhanced durability, with quenched and tempered end fittings and normalized bodies, ensuring reliability in challenging environments. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, they guarantee robust performance. The dimensions, including Thread Dia & Take Up of 5/16 x 4-1/2 inches, make them ideal for various wire rope hardware applications.

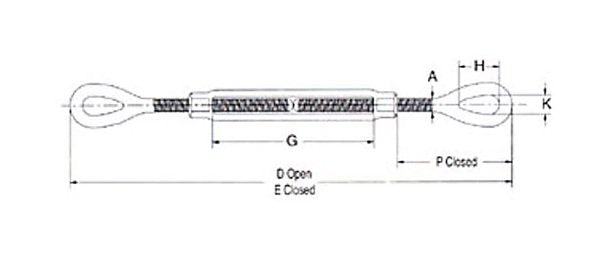

Product Specifications

Specifications A

0.31

Specifications D Open

14.12

Specifications E Closed

9.62

Specifications G

4.5

Specifications H

0.94

Specifications K

0.44

Specifications P Closed

2.09

Specifications Thread Dia Take Up In

5/16 x 4-1/2

Specifications Weight

0.47

Specifications Wll Lbs

800

Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 5/16 x 4-1/2
