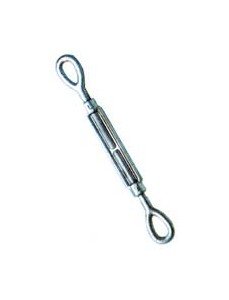

Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 7/8 x 12
Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 7/8 x 12
SKU:WIR-89a825
High-strength Hot Dip Galvanized Turnbuckles - Fed Spec FF-T-791b Type 1, Form 1, Class 4, 7/8 x 12, WLL 7200 lbs
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 7/8 x 12
$49.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 7/8 x 12
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye - 7/8 x 12 are crafted to meet the stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 requirements. With hot-dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies, these turnbuckles offer exceptional strength. Featuring a 2.5 times proof load to working load limit ratio, and an ultimate load capacity of 5 times the working load limit, they ensure reliable performance in demanding applications. With precise dimensions and a WLL of 7200 lbs, these turnbuckles are a dependable choice.

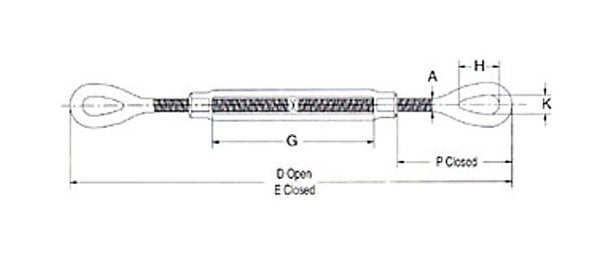

Product Specifications
Specifications A
0.88
Specifications D Open
36.82
Specifications E Closed
24.82
Specifications G
12
Specifications H
2.38
Specifications K
1.25
Specifications P Closed
5.1
Specifications Thread Dia Take Up In
7/8 x 12
Specifications Weight
8.1
Specifications Wll Lbs
7200
