Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook - Wire Rope Hardware & Tools

Name: Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook - Wire Rope Hardware & Tools
Brand: Lexco Cable Manufacturing
SKU: WIR-df9217
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-df9217

Meet stringent Federal Specification FF-T-791b standards with Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook - ideal for heavy-duty applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

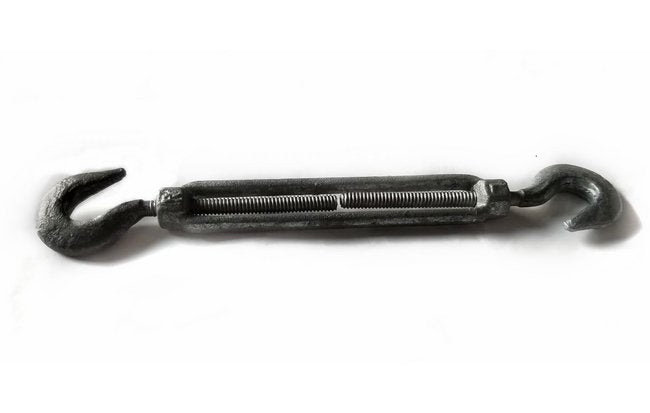

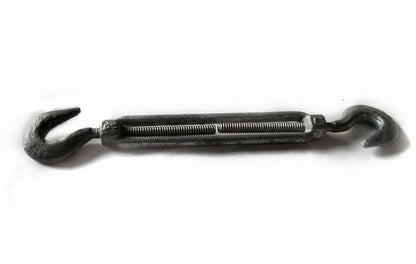

The Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook are precision-engineered to meet the rigorous Federal Specification FF-T-791b, Type 1, Form 1, Class 5 standards. With hot-dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies, these turnbuckles exceed industry norms. Featuring a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, they offer unmatched safety and reliability. With dimensions designed for precision and approx weight of 11.93 lbs, these turnbuckles are a dependable choice for demanding applications.

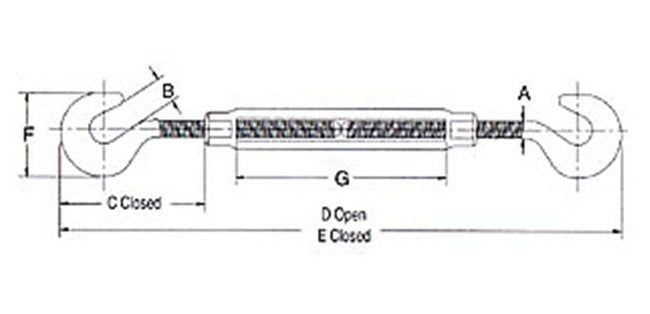

Product Specifications

Specifications A

Specifications B

1.25

Specifications C Closed

5.84

Specifications D Open

38.69

Specifications E Closed

26.69

Specifications F

4.25

Specifications G

Specifications Thread Dia Take Up In

1 x 12

Specifications Weight

11.93

Specifications Wll Lbs

5000
