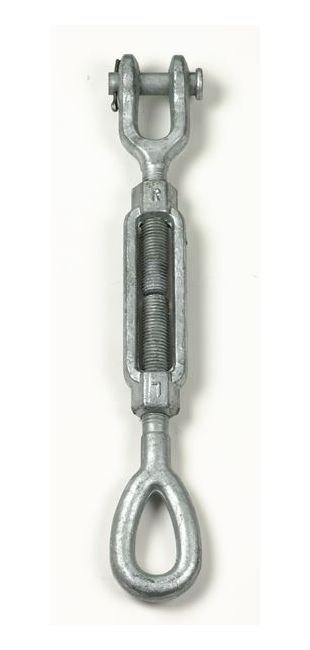

Hot Dip Galvanized Turnbuckle Jaw & Eye, 1-1/2 x 12
Hot Dip Galvanized Turnbuckle Jaw & Eye, 1-1/2 x 12
SKU:WIR-3af593
High-quality Hot Dip Galvanized Turnbuckle Jaw & Eye for heavy-duty applications, meets Federal Specification FF-T-791b standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Hot Dip Galvanized Turnbuckle Jaw & Eye, 1-1/2 x 12
$59.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Turnbuckle Jaw & Eye, 1-1/2 x 12
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye is a durable and reliable wire rope hardware essential for heavy-duty applications. Meeting Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards, this turnbuckle features quenched and tempered end fittings with normalized bodies. With a 2.5 times working load limit proof load and 5 times working load limit ultimate load, this turnbuckle ensures maximum safety and functionality. The precise dimensions provide a secure fit for various applications, making it ideal for industrial and institutional use.

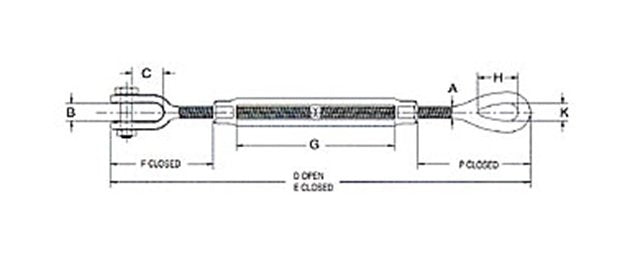

Product Specifications
Specifications A
1.5
Specifications B
2.06
Specifications C Closed
2.81
Specifications D Open
44.25
Specifications E Closed
32.23
Specifications F
7.88
Specifications G
12
Specifications H
4.06
Specifications K
2.12
Specifications Pin Diameter In
1-3/8
Specifications P Closed
8.62
Specifications Thread Dia Take Up In
1-1/2 x 12
Specifications Weight
28.99
Specifications Wll Lbs
21,400
