Hot Dip Galvanized Turnbuckle Jaw & Eye, 5/8 x 6
Hot Dip Galvanized Turnbuckle Jaw & Eye, 5/8 x 6
SKU:WIR-adb863
Meet Federal Spec FF-T-791b with our Galvanized Turnbuckle Jaw & Eye, 5/8 x 6. Ideal for heavy-duty wire rope applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hot Dip Galvanized Turnbuckle Jaw & Eye, 5/8 x 6
$45.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Turnbuckle Jaw & Eye, 5/8 x 6
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

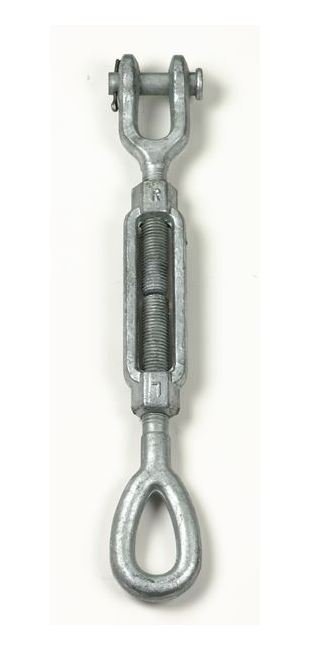

Our Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye is designed to meet the stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards. With quenched and tempered end fittings, normalized bodies, and a 2.5x proof load over the working load limit, this turnbuckle ensures reliable performance under heavy loads. Featuring precise dimensions and a durable construction, this turnbuckle is ideal for wire rope applications requiring strength and corrosion resistance.

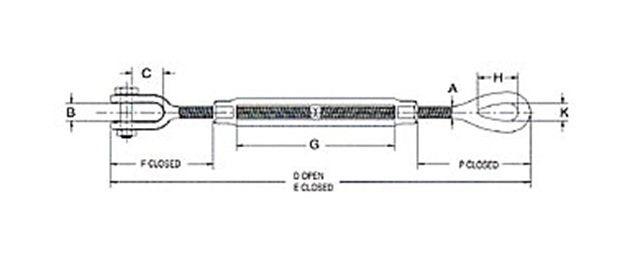

Product Specifications
Specifications A
0.63
Specifications B
0.75
Specifications C Closed
1.31
Specifications D Open
21.28
Specifications E Closed
15.28
Specifications F
3.5
Specifications G
6
Specifications H
1.75
Specifications K
0.88
Specifications Pin Diameter In
1/2
Specifications P Closed
3.9
Specifications Thread Dia Take Up In
5/8 x 6
Specifications Weight
2.35
Specifications Wll Lbs
3,500
