Hot Dip Galvanized Turnbuckles Body, 7/8' x 18' Thread Dia, WLL 7200 lbs

Hot Dip Galvanized Turnbuckles Body, 7/8' x 18' Thread Dia, WLL 7200 lbs

SKU:WIR-592ec2

High-strength Hot Dip Galvanized Turnbuckle Body for heavy-duty applications, WLL 7200 lbs

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Hot Dip Galvanized Turnbuckles Body, 7/8' x 18' Thread Dia, WLL 7200 lbs

Hot Dip Galvanized Turnbuckles Body, 7/8' x 18' Thread Dia, WLL 7200 lbs

$49.99

Quantity: 1

Claim Your Seller Account

Hot Dip Galvanized Turnbuckles Body, 7/8' x 18' Thread Dia, WLL 7200 lbs

Hot Dip Galvanized Turnbuckles Body, 7/8' x 18' Thread Dia, WLL 7200 lbs

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

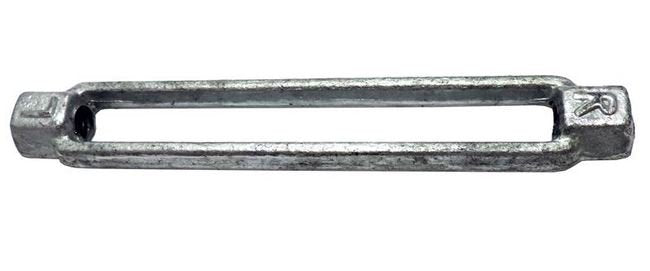

The Hot Dip Galvanized Drop Forged Turnbuckles Body provides exceptional strength and durability for a variety of applications. Compliant with Federal Specification FF-T-791b, Type 1, Form 1 - Class 2, this turnbuckle body is specifically designed for heavy-duty use. With a thread diameter of 7/8 inch and a Working Load Limit (WLL) of 7200 lbs, it offers reliability and safety in demanding environments. The normalized bodies ensure consistent performance, and the galvanized finish provides corrosion resistance for long-lasting quality.

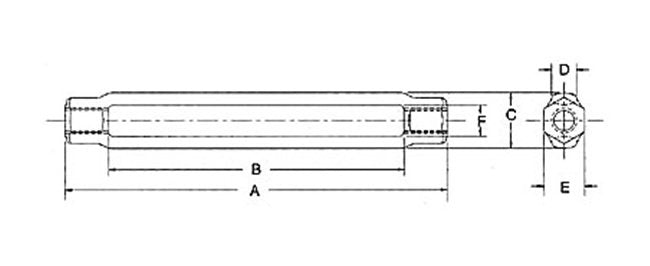

Product Specifications

Specifications A
20.62
Specifications B
18
Specifications C
1.94
Specifications D
0.88
Specifications E
1.31
Specifications F
1.06
Specifications Thread Dia Take Up In
7/8 x 18
Specifications Weight
3.8
Specifications Wll Lbs
7200
