Hot Dip Galvanized Turnbuckles Eye & Eye, Thread Dia 1x6
Hot Dip Galvanized Turnbuckles Eye & Eye, Thread Dia 1x6
SKU:WIR-9ac4e2
High-quality Hot Dip Galvanized Turnbuckles, Federal Spec FF-T-791b Compliant
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Hot Dip Galvanized Turnbuckles Eye & Eye, Thread Dia 1x6
$89.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Turnbuckles Eye & Eye, Thread Dia 1x6
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

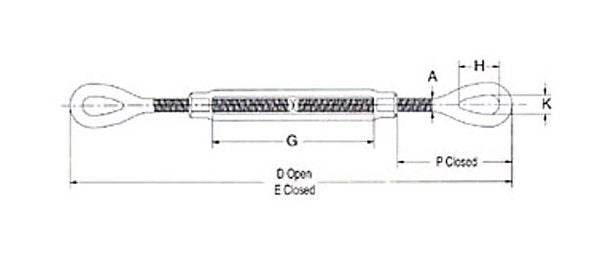

Our Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye are precision-engineered to meet the highest standards. Compliant with Federal Specification FF-T-791b, Type 1, Form 1 - Class 4, these turnbuckles are hot dip galvanized for enhanced durability. Featuring quenched and tempered end fittings and normalized bodies, they boast a 2.5 times working load limit proof load. With dimensions approximating Thread Dia 1x6 inches, A 1 inch, D Open 27.72 inches, E Closed 21.72 inches, G 6 inches, H 3 inches, and K 1.44 inches, these turnbuckles are a reliable choice for industrial applications.
Product Specifications
Specifications A
1
Specifications D Open
27.72
Specifications E Closed
21.72
Specifications G
6
Specifications H
3
Specifications K
1.44
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 6
Specifications Weight
9.33
Specifications Wll Lbs
10000
