Hot Dip Galvanized Turnbuckles Hook & Eye, Federal Spec FF-T-791b, Class 6

Name: Hot Dip Galvanized Turnbuckles Hook & Eye, Federal Spec FF-T-791b, Class 6
Brand: Lexco Cable Manufacturing
SKU: WIR-efce68
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-efce68

Premium Hot Dip Galvanized Turnbuckle Hook & Eye, meets Federal Spec FF-T-791b, Class 6 standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

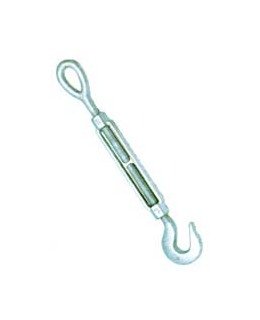

The Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye meets stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 6 standards, ensuring exceptional quality and durability. With quenched and tempered end fittings, normalized bodies, and a 2.5 times working load limit proof load, this turnbuckle guarantees reliability under heavy loads. The ultimate load capacity is 5 times the working load limit, providing an extra margin of safety. Precision-engineered with dimensions approximating Thread Dia & Take Up of 3/4 x 9 inches, this turnbuckle is a dependable choice for wire rope hardware applications.

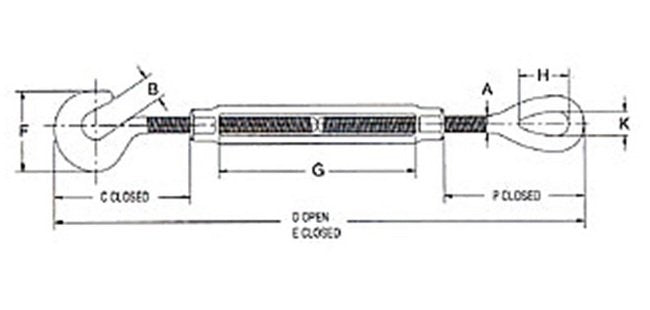

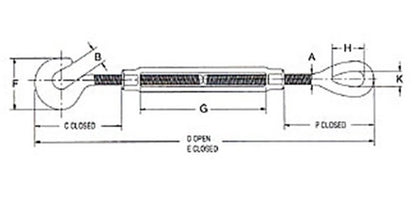

Product Specifications

Specifications A

0.75

Specifications B

0.98

Specifications C Closed

4.52

Specifications D Open

29.28

Specifications E Closed

20.28

Specifications F

3.33

Specifications G

Specifications H

2.09

Specifications K

Specifications P Closed

4.69

Specifications Thread Dia Take Up In

3/4 x 9

Specifications Weight

4.61

Specifications Wll Lbs

3000

Hot Dip Galvanized Turnbuckles Hook & Eye, Federal Spec FF-T-791b, Class 6
