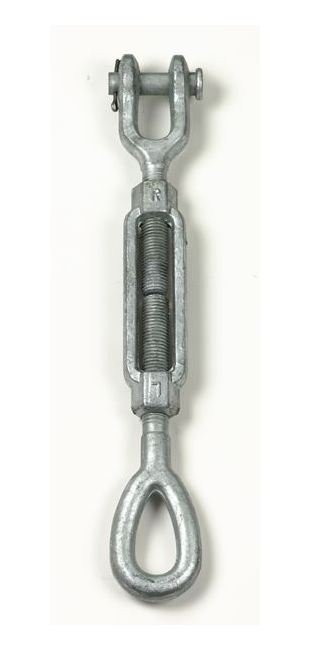

Hot Dip Galvanized Turnbuckles Jaw & Eye
Hot Dip Galvanized Turnbuckles Jaw & Eye
SKU:WIR-67848a
Premium Hot Dip Galvanized Turnbuckles. Compliant with Federal Specification FF-T-791b. Superior strength and corrosion resistance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Hot Dip Galvanized Turnbuckles Jaw & Eye
$59.99
Quantity: 1
Claim Your Seller Account
Hot Dip Galvanized Turnbuckles Jaw & Eye
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye is built to meet the most stringent standards, including Federal Specification FF-T-791b, Type 1, Form 1 - Class 8. With quenched and tempered end fittings, normalized bodies, and a 2.5 times working load limit proof load, this turnbuckle offers reliable performance. The ultimate load capacity is 5 times the working load limit, ensuring exceptional strength and durability. Ideal for wire rope applications, this turnbuckle boasts precise dimensions and a galvanized finish for enhanced corrosion resistance.

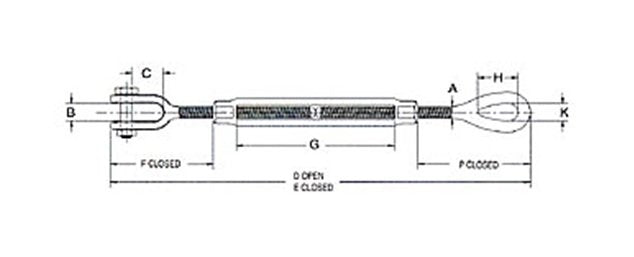

Product Specifications
Specifications A
1
Specifications B
1.19
Specifications C Closed
2.06
Specifications D Open
50.89
Specifications E Closed
32.89
Specifications F
5.53
Specifications G
18
Specifications H
3
Specifications K
1.44
Specifications Pin Diameter In
7/8
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 18
Specifications Weight
13.3
Specifications Wll Lbs
10,000
